Sill panel trim, removing and installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

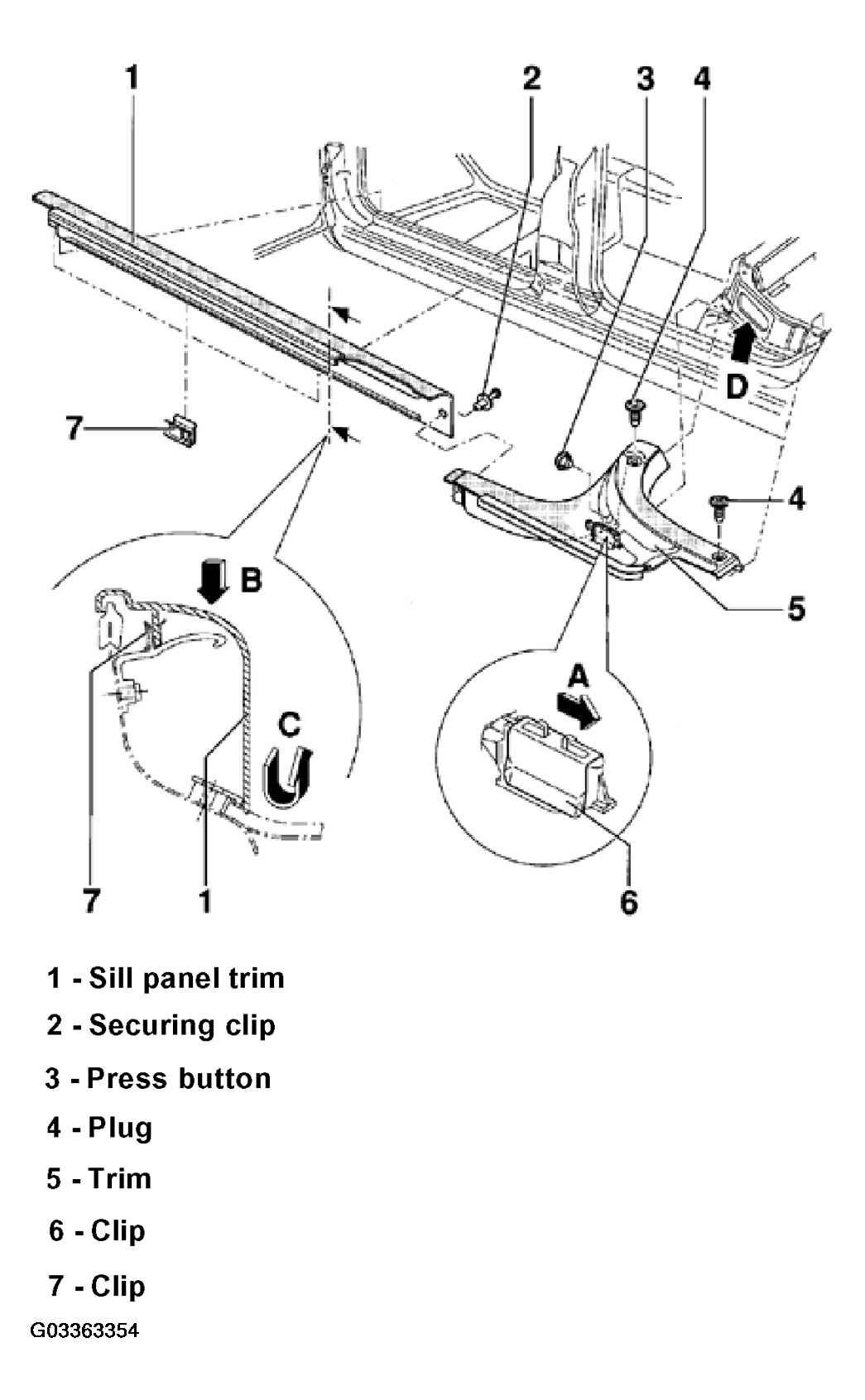

The following list refers to items in Fig 1
.
- - Sill panel trim
Removing:
- Remove securing clip - 2 -.
- Press onto sill panel trim (arrow B) and simultaneously unhook lower sill panel trim (arrow C).
- Pull sill panel trim off clips - 7 -.
- - Securing clip
- Two part
Removing:
- Unscrew inner part with a Phillips screwdriver
Installing:
- Press outer part and inner part in turn into mounting hole
- - Press button
- Unscrew or press on
- - Plug
- Pry out with lever 80-200
- - Trim
- Rear part
Removing:
- Remove sill panel trim - 1 -.
- Unscrew press button - 3 - and pry out plug - 4 -.
- Slide clip - 6 - on its seating rearward (arrow A). To do this, grip from inside of seat frame through opening (arrow D).
- Remove trim.
Installing:
- First slide clip - 6 - completely back onto its seat.
- - Clip
- - Clip
