Golf 4-door, Jetta
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Trim fits over sealing flange of door inner seal.
NOTE:

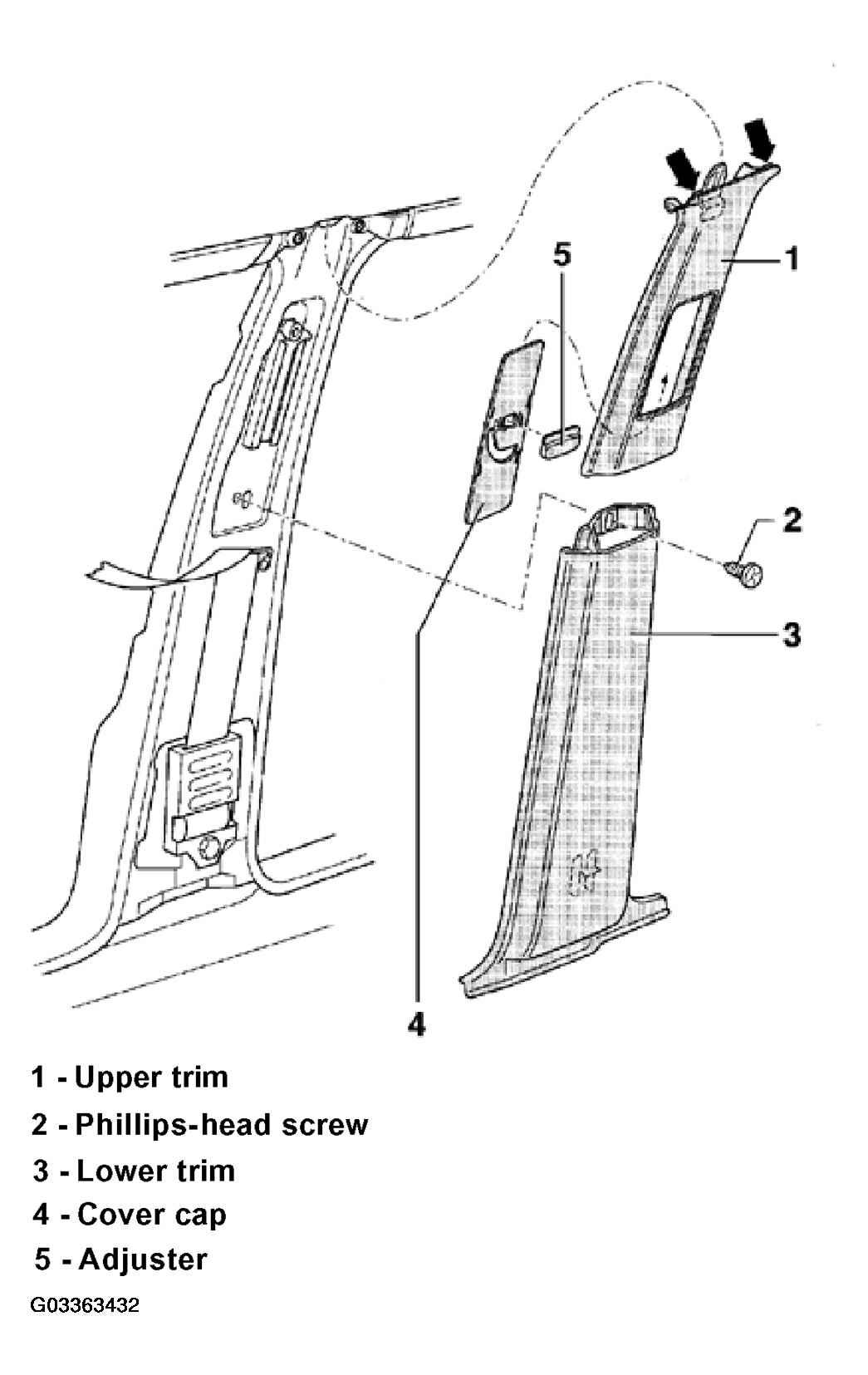

The following list refers to items in Fig 1.
- - Upper trim
Removing:
- Remove sill panel trim. See SILL PANEL TRIM, REMOVING AND INSTALLING .
- Remove front seat belt anchor. See SEAT BELTS .
- Pull trim off starting from bottom.
Installing:
- First locate retaining lugs (arrow) in A -pillar and C-pillar trim.
- Check function of belt height adjuster.
- - Phillips-head screw
- - Lower trim
Removing:
- Remove sill panel trim. See SILL PANEL TRIM, REMOVING AND INSTALLING .
- Remove front seat belt anchor. See SEAT BELTS .
- Remove upper trim -1- and seat belt anchor.
- Remove Phillips-head screw -2-.
- Pull trim off starting from top.
- - Cover cap
- - Adjuster
