Component layout from 1997 & up
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

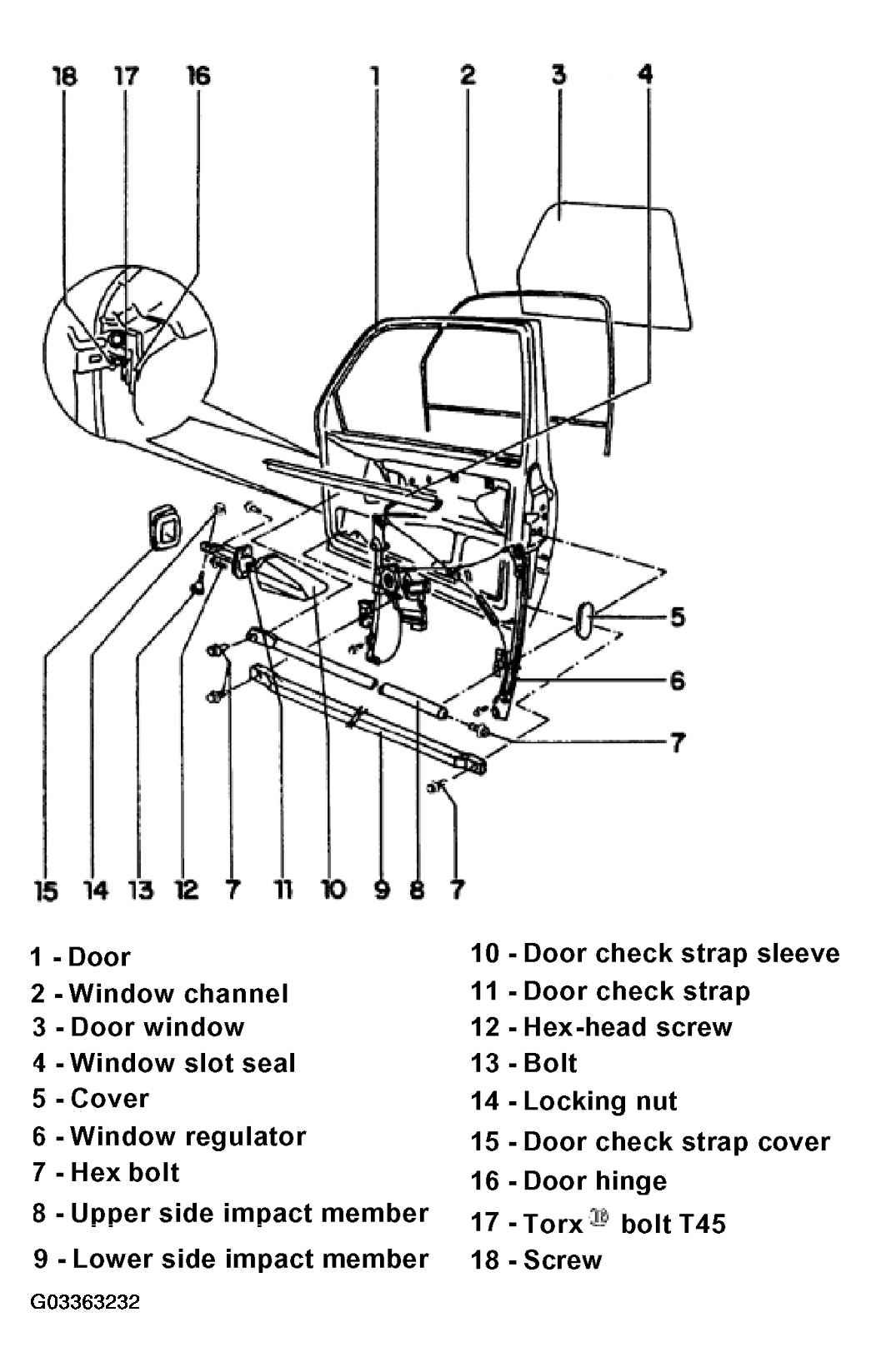

The following list refers to Fig 1
.
- - Door
- Removing and installing. See DOOR, REMOVING AND INSTALLING .
- Adjust at hinge within oversized holes. See DOOR, ADJUSTMENT .
- - Window channel
- Fastened into window frame
- - Door window
- Removing. See DOOR WINDOW, REMOVING .
- Adjusting. See DOOR WINDOW, ADJUSTING .
- - Window slot seal
- Pushed onto flange
- - Cover
- To close opening for impact member
- - Window regulator
- Removing and installing. See WINDOW REGULATORS, SERVICING .
- - Hex bolt
- 23 N.m (17 ft lb)
- - Upper side impact member
- Steel
- - Lower side impact member
- Aluminum
- - Door check strap sleeve
- - Door check strap
- - Hex-head screw
- 7.5 N.m (66 in. lb)
- - Bolt
- - Locking nut
- 6.5 N.m (58 in. lb)
- - Door check strap cover
- Self-adhesive, attached to A -pillar
- - Door hinge
- Bolted to door and A -pillar
- Hinge bolts inserted into box section and secured with screw
- - Torx(R) bolt T45
- 36 N.m (27 ft lb)
- - Screw
- 23 N.m (17 ft lb)
