Clutch cable not tensioned

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Mount retaining strap -A- above dust boot.
Connect clutch cable to clutch pedal, see INSTALLING .
Pull cable end piece in direction of arrow -1-, hold in place, and move adjusting mechanism -B- back and forth several times until it can be pressed together in direction of bulkhead (arrow -2-).

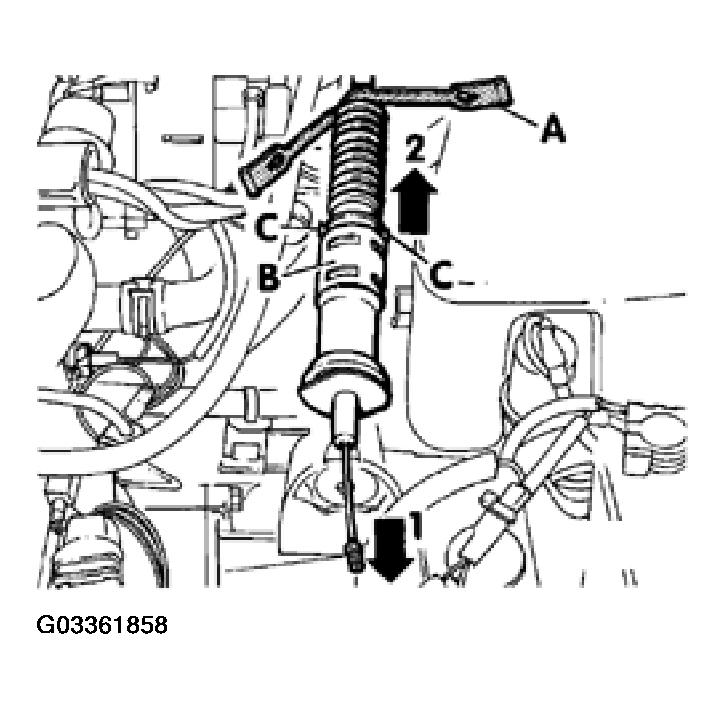

Fig 1: Pulling Clutch Cable End
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Hold adjusting mechanism in compressed state and hook retaining strap tabs onto pins -C- on adjusting mechanism (second technician required).
Connect clutch cable at transmission, see INSTALLING .
Install over-center spring, see INSTALLING .
Remove retaining strap.
Check operation of adjusting mechanism, see CLUTCH CABLE ADJUSTING MECHANISM, CHECKING FUNCTION AND REPAIRING .

NOTE: No other cable (for example: accelerator pedal cable, etc.) is to be attached to the clutch cable. The clutch cable adjusting mechanism may stop functioning.
