Clutch cable, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate clutch cable mounting point at clutch pedal with MoS2 grease.
Pass clutch cable through bulkhead and suspend in front recess of clutch pedal, while making sure support plate (arrow) is installed on clutch cable.

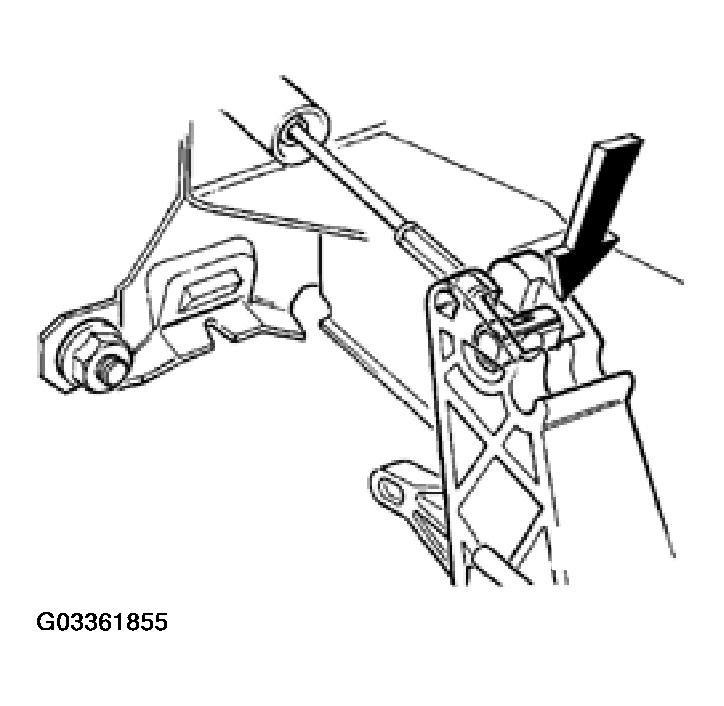

Fig 1: Passing Clutch Cable Through Bulkhead

Courtesy of VOLKSWAGEN OF AMERICA, INC.
