Over-center spring, removing and installing: Installing
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
The spring is installed in reverse order of removal. Note the following:
- Locate relay panel in left retainer when installing over - center spring.
- Pull clutch pedal back toward passenger compartment.

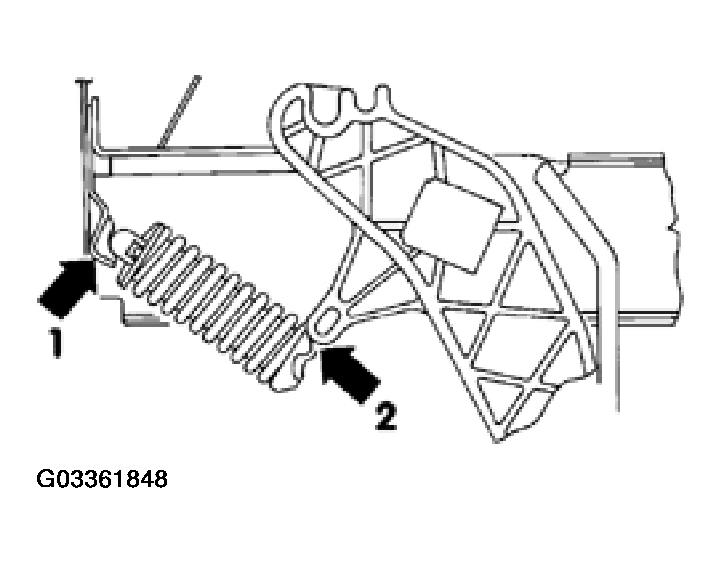

- Guide over-center spring between clutch pedal and relay panel retainer until it is positioned in its bracket (arrow -1-) and directly below clutch pedal mounting lug (arrow - 2-).
- Press over -center spring onto mounting lug while depressing clutch pedal.
NOTE:
If the clutch pedal is noisy during operation (squeaks), lightly lubricate the spring contact points (arrows -1- and -2-) with lithium grease. If the noise persists, remove the spring, lubricate its internal sliding surfaces and reinstall.
