Engine code AEG (up to model year 1999): Notes
WARNING: This page is about a different variant/trim than selected.

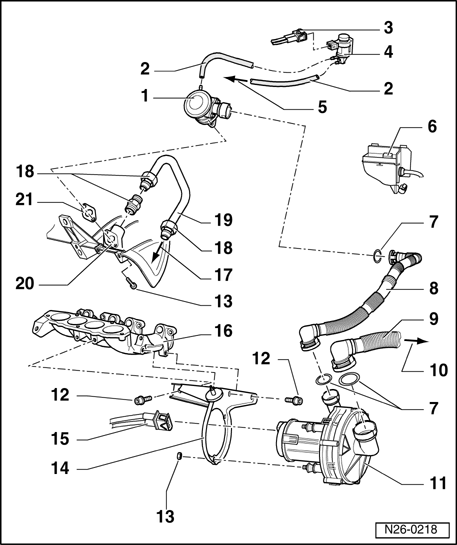

1 - Combination valve
- Checking. Refer to Combination valve, checking
- To replace, remove warm air collector plate
2 - Vacuum hose
3 - Connector
- 2-pin
4 - Secondary Air Injection (AIR) solenoid valve -N112-
5 - To connection on line to brake booster
6 - Secondary Air Injection (AIR) pump relay -J299-
- In protective housing for relays (engine compartment). See Figure , Position of relays in protective housing (on left in engine compartment)
7 - Sealing ring
- Always replace
8 - Pressure hose
- Check if seated securely
- Press together at front to release.
9 - Intake hose
- From air cleaner upper part
- For secondary air injection pump
- Check if seated securely
- Press together at front to release
10 - To air cleaner
11 - Secondary Air Injection (AIR) pump motor -V101-
- Checking. Refer to Secondary air injection pump motor, checking
12 - 25 Nm
13 - 10 Nm
14 - Bracket
- For secondary air injection pump motor
- Secured to intake manifold
15 - Connector
- 2-pin
16 - Intake manifold - lower part
17 - To connection on intake manifold
18 - 30 Nm
19 - Connecting pipe
20 - Warm air collector plate
- With mounting for combination valve
21 - Seal
- Always replace
