Headlights (Cabrio from 10.98), assembly overview
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

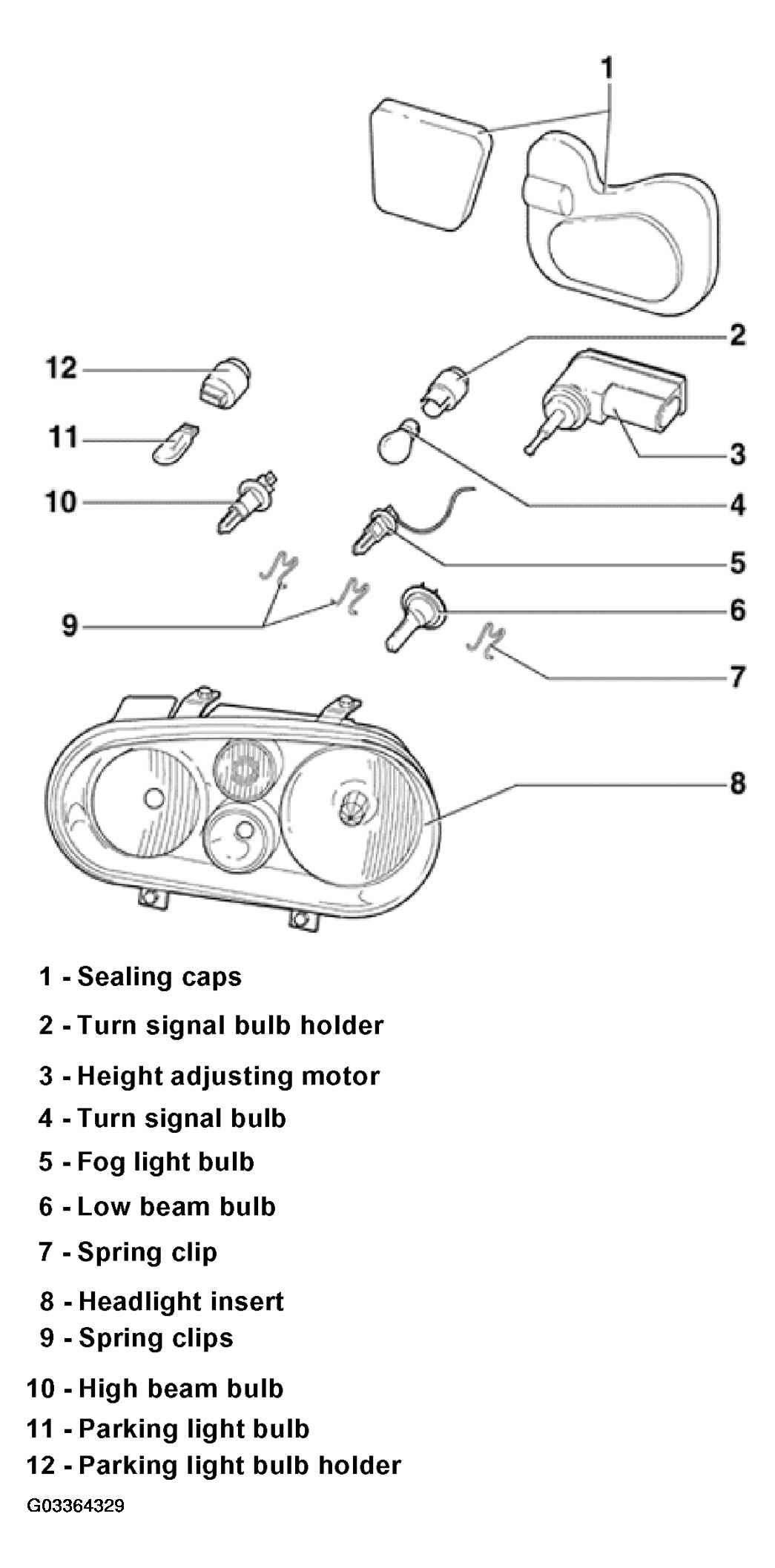

The following list refers to items in Fig 1.
- Sealing caps
- Turn signal bulb holder
- Height adjusting motor
- Not for USA/CDN
- Turn signal bulb
- Bulb: 12 V, 21 W
- Replacing, refer to FRONT TURN SIGNAL BULB, REPLACING
- Fog light bulb
- Bulb: H3, 12 V, 55 W
- Replacing, refer to FOG LIGHT BULB, REPLACING
- Low beam bulb
- Bulb: H7, 12 V, 55 W
- Replacing, refer to HEADLIGHT AND TURN SIGNAL BULBS (CABRIO FROM 10.98), REPLACING
- Spring clip
- Headlight insert
- Adjusting headlight, refer to HEADLIGHTS (CABRIO FROM 10.98), ADJUSTING
- Removing and installing, refer to HEADLIGHTS (CABRIO FROM 10.98), REMOVING AND INSTALLING
- Servicing headlight upper securing tabs, refer to HEADLIGHT UPPER SECURING LUGS, SERVICING
- Spring clips
- High beam bulb
- Bulb: H1, 12 V, 55 W
- Replacing, refer to HIGH BEAM BULB, REPLACING
- Parking light bulb
- Bulb: 12 V, 5 W
- Replacing, refer to PARKING LIGHT BULB, REPLACING
- Parking light bulb holder
