Front turn signal bulb, replacing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Disengage spring clip -arrow- and remove sealing cap.

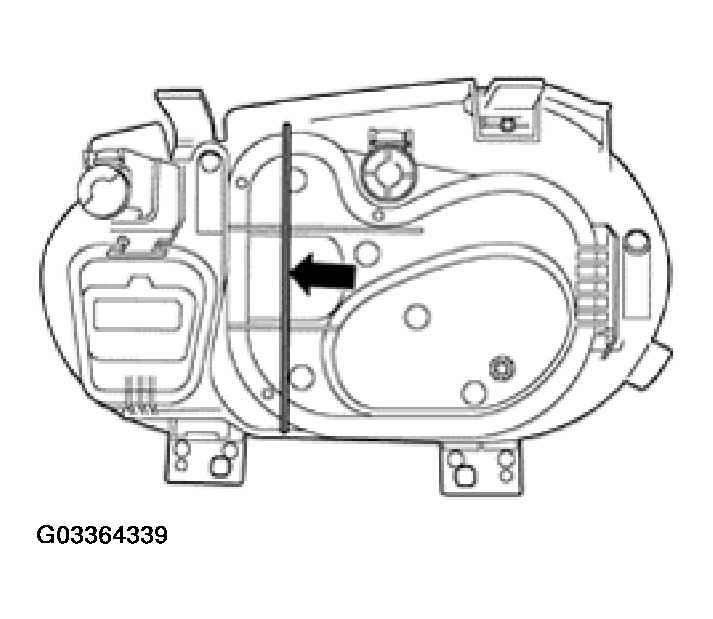

Fig 1: Removing Front Turn Signal Bulb Sealing Cap (Cabrio From 10.98)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Turn bulb holder -arrow- to left and pull out of housing.

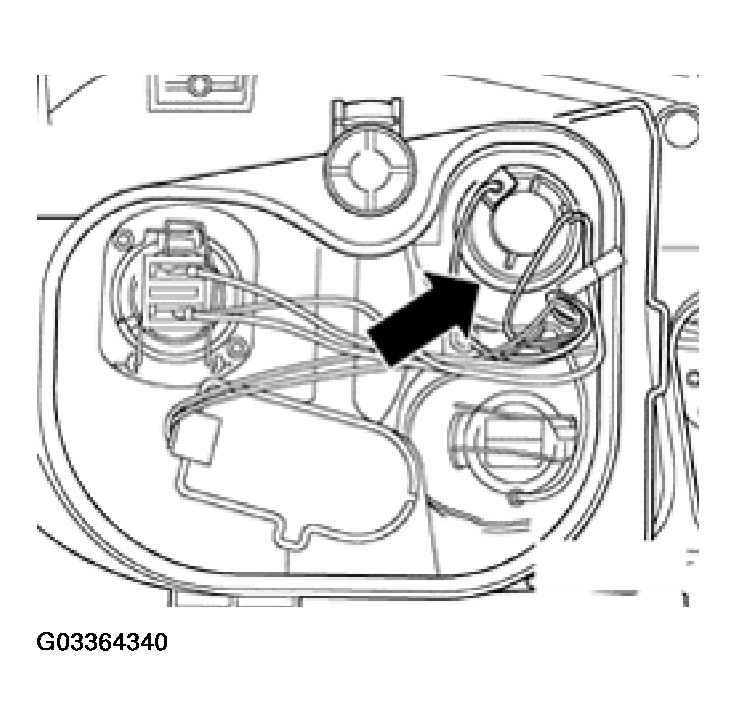

Fig 2: Removing Front Turn Signal Bulb From Bulb Holder (Cabrio From 10.98)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove bulb from bulb holder.

Installation is in reverse order of removal.

NOTE: Bulb holder must engage in housing during installation.

Always check turn signal function after installing new bulb.
