Fog light bulb, replacing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Disengage spring clip -arrow- and remove sealing cap.

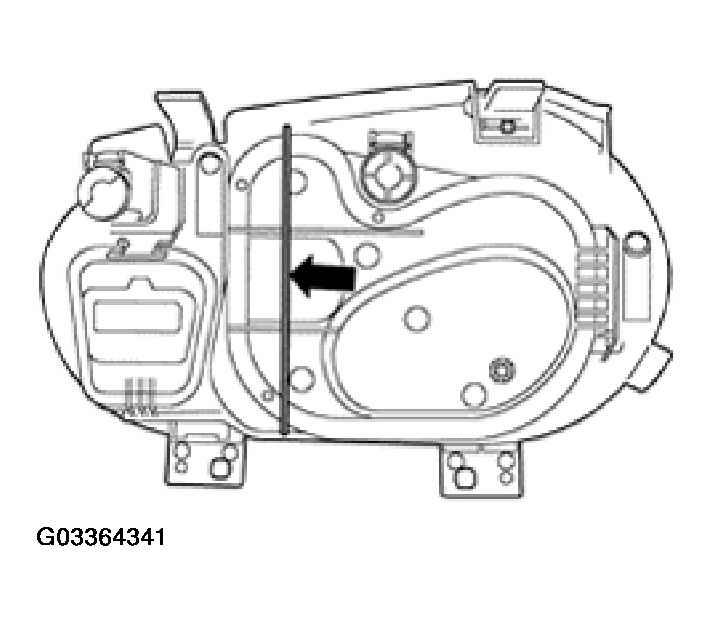

Fig 1: Disengaging Spring Clip From Sealing Cap (Cabrio From 10.98)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Disconnect harness connector -1- at bulb.
Disengage retaining clip -2- by pushing on locking lugs -3-.

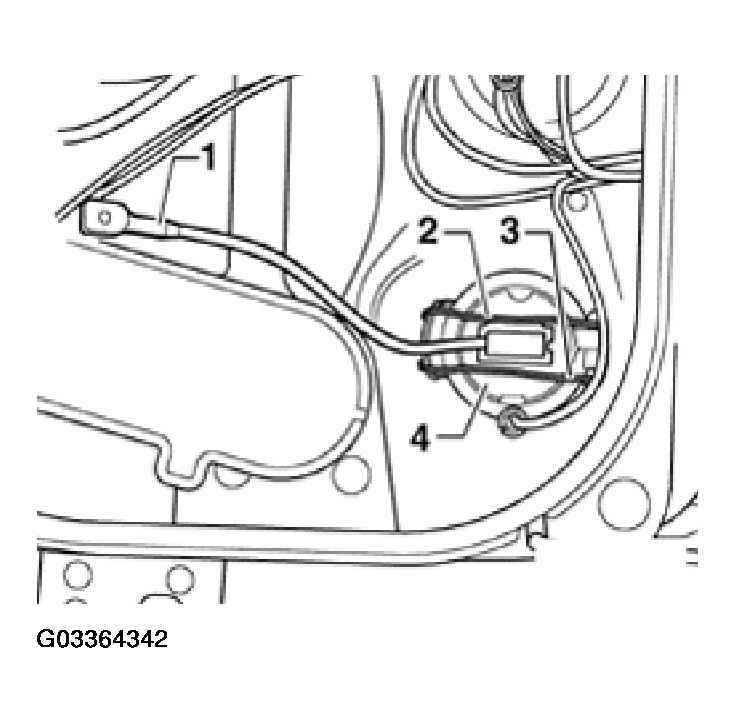

Fig 2: Disengaging Retaining Clip By Pushing On Locking Lugs (Cabrio From 10.98)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Pull bulb -4- out of reflector.
Do not touch glass during installation.
Insert new bulb so lugs on laminated plate align with grooves in reflector.
Attach harness connector -1-.
Attach sealing cap.
Always check headlight setting after installing new bulb.
