Connect VAG 1551 Scan Tool and select function (check control module)

All fuses OK according to wiring diagram.
Battery positive voltage (B+) OK (at least 9 V).

NOTE:

The airbag system is switched off during the airbag On Board Diagnostic (OBD) program sequence.
The DTC memory can be erased only after repairs have been completed and DTC memory has been checked again.

With the ignition switched off, connect VAG 1551 Scan Tool with adapter wire VAG 1551/1 to the Data Link Connector (DLC) as follows:

Unclip cover for DLC below heater/ventilation controls.
First connect black connector of VAG 1551/1 Scan Tool to black DLC connector of vehicle (voltage supply).

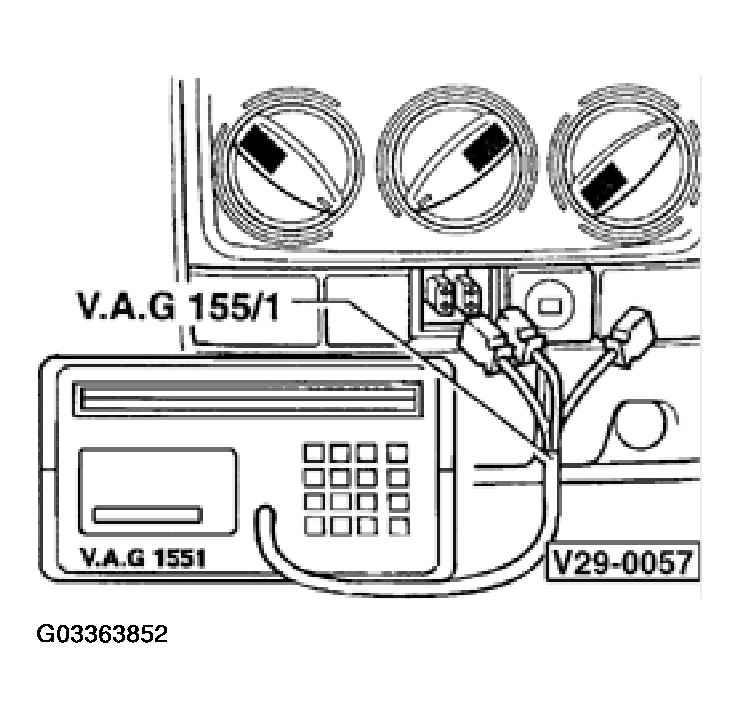

Fig 1: Connecting Black Connector Of VAG 1551/1 Scan Tool To Black DLC Connector (Up To 08.94)

Indicated on display:

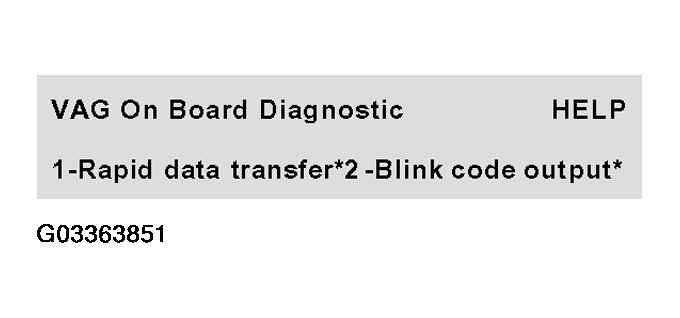

Fig 2: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (1 Of 13)

* Operating modes 1 and 2 are displayed alternately.

NOTE: Do not connect the white connector if you do not get a display. Check the voltage supply for VAG 1551 Scan Tool according to applicable wiring diagram.

Connect white connector for VAG 1551 Scan Tool to vehicle DLC. The blue connector is not used.

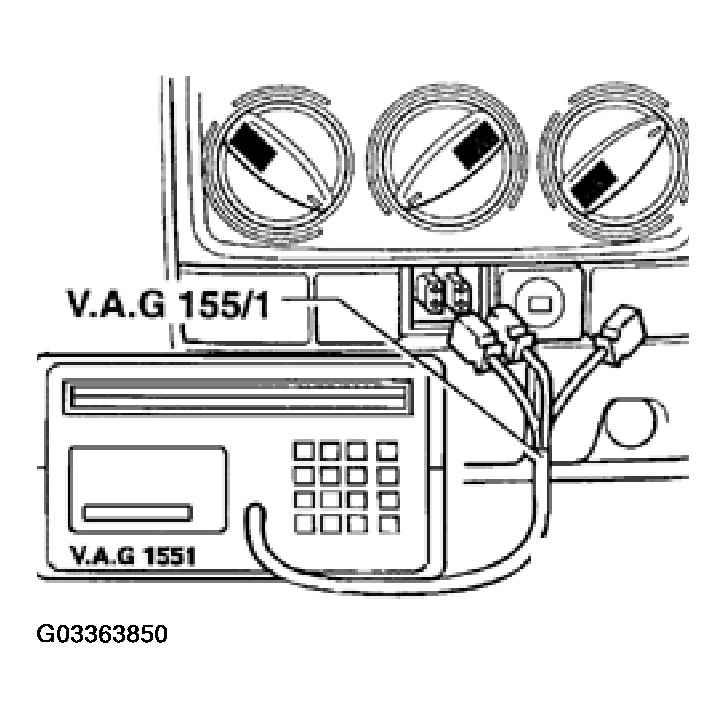

Fig 3: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (2 Of 13)

NOTE:

Additional operating instructions can be printed out by pressing the HELP button on the VAG 1551 Scan Tool.
The --> button advances the Scan Tool program sequence.
The PRINT button switches the printer on (indicator lamp in button lights up).

Switch ignition on.
Press button -1- for "Rapid data transfer" operating mode.

Indicated on display

Fig 4: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (3 Of 13)

Press buttons -1- and -5- to insert "Airbag" address word 15

Indicated on display

Fig 5: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (4 Of 13))

Press -Q- button to confirm input.

Airbag Control Module identification (example) will be displayed.

Fig 6: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (5 Of 13)

NOTE:

If any other message appears in the display, the possible causes of the malfunction can be printed out by pressing the HELP button.

Fig 7: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (6 Of 13)
The ignition must be switched on.

Fig 8: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (7 Of 13)
Malfunctions have occurred at the start or during the program (external interference)

Fig 9: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (8 Of 13)
Check Data Link Connector (DLC) adapter harness, voltage supply (B+) and Ground (GND) connections.

Fig 10: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (9 Of 13)
- After repairing the possible causes of the malfunction, again enter address word 15 for "airbag" and press -Q- button to confirm input.

Indicated on display

Fig 11: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (10 Of 13)

Then the following display will appear:

Fig 12: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (11 Of 13)

Airbag control module identification (example) will appear

Press --> button

Indicated on display (selected function, such as 02 - Check DTC Memory):

Fig 13: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (12 Of 13)

NOTE: After pressing the HELP button, a selection of possible functions can be printed:

List Of Possible Functions - Up To 08.94

Function		See
01 -	Check control module version	CONNECT VAG 1551 SCAN TOOL AND SELECT FUNCTION (CHECK CONTROL MODULE)
02 -	Check DTC memory	Check DTC Memory
05 -	Erase DTC memory	ERASE DTC MEMORY
06 -	End Output	END OUTPUT

Only listed functions are presently available for the OBD.

After pressing the --> button, the VAG 1551 Scan Tool returns to the beginning of the program.

Indicated on display (selected function, such as 02 - Check DTC Memory):

Fig 14: Airbag OBD, Up To 08.94: Identifying VAG 1551 Scan Tool Display (13 Of 13)
