Multi-function steering wheel, overview

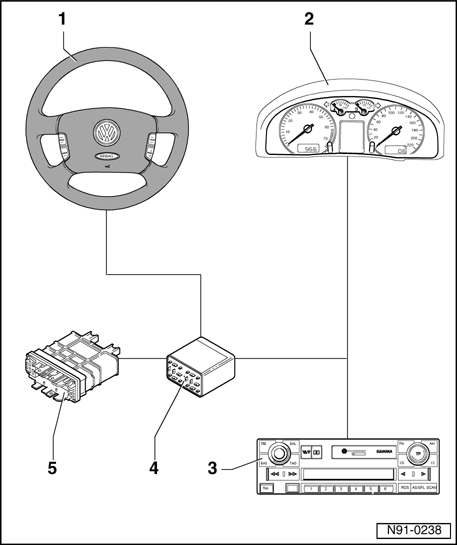

Fig 1: Identifying Multi-function Steering Wheel And Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Multi-function steering wheel

• With integrated control unit -E221-
• Removing and installing. Refer to Control unit in steering wheel -E221-, removing and installing

2 - Instrument cluster

• Control module with display unit in instrument cluster -J285-
• Removing and installing instrument cluster

Refer to 90 INSTRUMENTS Instrument panel, instruments; Instrument cluster; Removing and installing instrument cluster

3 - Radio

• Installed in center console

4 - Control module for multi-function steering wheel -J453-

• Installed on 13-position auxiliary relay panel
• Removing and installing. Refer to Control module for multi-function steering wheel -J453-, removing and installing
• Multi-pin connector assignments. Refer to Control module for multi-function steering wheel multi-pin connector assignments

5 - Engine Control Module (ECM)

• Controls cruise control
