Side Defroster Duct (Left Side) Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove windshield defroster duct. Refer to WINDSHIELD DEFROSTER DUCT REMOVAL AND INSTALLATION/REPLACEMENT
2. Remove instrument panel outer air outlet duct. Refer to INSTRUMENT PANEL OUTER AIR OUTLET DUCT REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

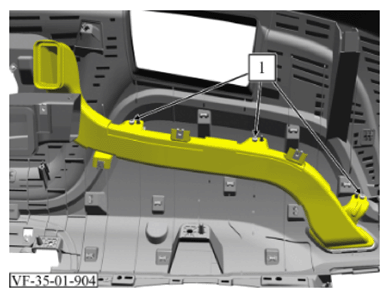

3. Remove 3 screws (1).

   Torque: 1.8 Nm

   Courtesy of VINFAST, LLC

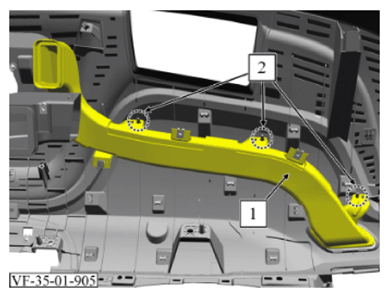

4. Lift the side defroster duct (1) out of the 3 guide pins (2) and remove it.

Installation Procedure:

Courtesy of VINFAST, LLC

Installation note: Check seal (1) for damage and replace if needed.

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install instrument panel outer air outlet duct. Refer to INSTRUMENT PANEL OUTER AIR OUTLET DUCT REMOVAL AND INSTALLATION/REPLACEMENT
3. Install windshield defroster duct. Refer to WINDSHIELD DEFROSTER DUCT REMOVAL AND INSTALLATION/REPLACEMENT
