Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL REAR SEAT INNER BELT ASSEMBLY
    1. Install the rear seat inner belt assembly with the bolt.

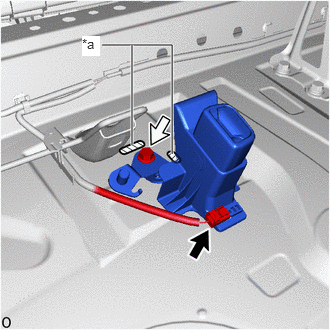

      GTY867320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protruding Part
      Connector
      Bolt

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      NOTE:

      Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part.

    2. w/ Seat Belt Warning System:
      1. Connect the connector.
  2. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Tighten the bolt to install the rear seat inner with center belt assembly LH.

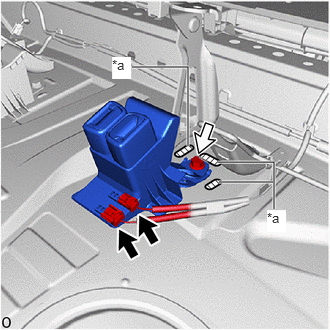

      GTY855305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protruding Part
      Connector
      Bolt

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      NOTE:

      Do not allow the anchor part of the rear seat inner with center belt assembly LH to overlap the protruding part.

    2. w/ Seat Belt Warning System:
      1. Connect the 2 connectors.
  3. INSTALL REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  4. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    See step  14

  5. INSTALL REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 12

  6. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 13

  7. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 14

  8. INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)

    Refer to OPERATION CHECK [11/2018 - ]
