Removal [12/2022 - ]: Procedure

  1. REMOVE REAR FLOOR SIDE MEMBER COVER LH

    See step  1, or refer to PROCEDURE - Step 2

  2. REMOVE REAR FLOOR SIDE MEMBER COVER RH

    See step  2, or refer to PROCEDURE - Step 3

  3. REMOVE REAR WHEEL

    Refer to REMOVAL [12/2022 - ]

  4. REMOVE REAR STABILIZER BAR (w/ Stabilizer Bar)
    Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - ]
  5. REMOVE REAR COIL SPRING
    See step  6 [12/2022 - 03/2023], or See step  7 [03/2023 - ]
  6. REMOVE REAR LOWER COIL SPRING INSULATOR

    See step  8 [12/2022 - 03/2023], or See step  9 [03/2023 - ]

  7. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

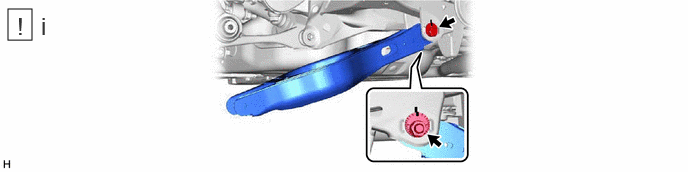

    1. GTY1147948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut, No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear No. 2 suspension arm assembly.
        NOTE:

        Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

  8. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY
    1. GTY1142913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts, 2 nuts and rear No. 1 suspension arm assembly from the rear axle carrier sub-assembly and rear suspension member sub-assembly.
        NOTE:

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
