Removal [12/2022 - 03/2023]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

Refer to REMOVAL [12/2022 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

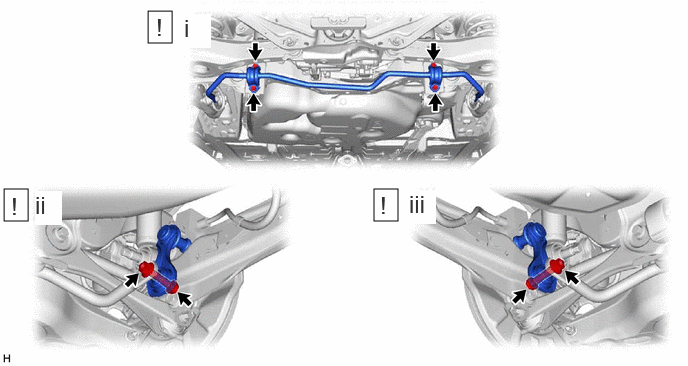

   1. Remove the 4 bolts and rear stabilizer bar from the rear suspension member sub-assembly.
   2. Remove the bolt and nut, and separate the rear stabilizer bar from the rear stabilizer link assembly LH.
      NOTE:

      Loosen the nut with the bolt secured.

   3. Remove the bolt and nut, and remove the rear stabilizer bar from the rear stabilizer link assembly RH.
      NOTE:

      Loosen the nut with the bolt secured.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

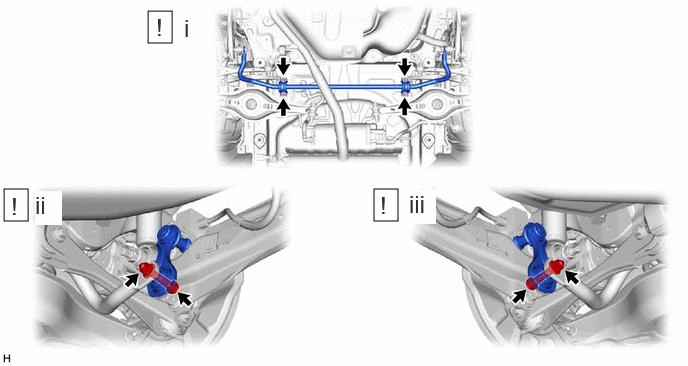

   1. Remove the 4 bolts and rear stabilizer bar from the rear suspension member sub-assembly.
   2. Remove the bolt and nut, and separate the rear stabilizer bar from the rear stabilizer link assembly LH.
      NOTE:

      Loosen the nut with the bolt secured.

   3. Remove the bolt and nut, and remove the rear stabilizer bar from the rear stabilizer link assembly RH.
      NOTE:

      Loosen the nut with the bolt secured.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the nut and rear stabilizer link assembly LH from the rear trailing arm assembly.

      HINT:

      If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

1. Perform the same procedure as for the LH side.
