Installation [12/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

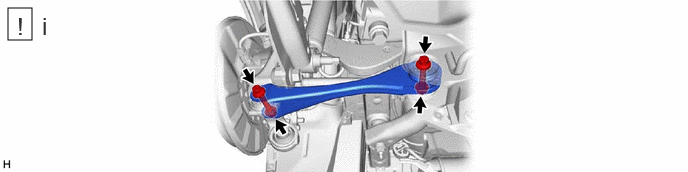

   1. Temporarily install the rear No. 1 suspension arm assembly RH to the rear axle carrier sub-assembly and rear suspension member sub-assembly with the 2 bolts and 2 nuts.
      NOTE:

      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
      • Insert the bolt with the threaded end facing the rear of the vehicle.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Temporarily install the rear No. 2 suspension arm assembly RH to the rear suspension member sub-assembly with the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and nut.
      NOTE:

      • Insert the rear suspension toe adjust cam sub-assembly from the front of the vehicle.
      • When tightening the nut, keep the rear suspension toe adjust cam sub-assembly from rotating.

• Use the same procedure as for the LH side.

  See step  2 [12/2022 - 03/2023], or See step  2 [03/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

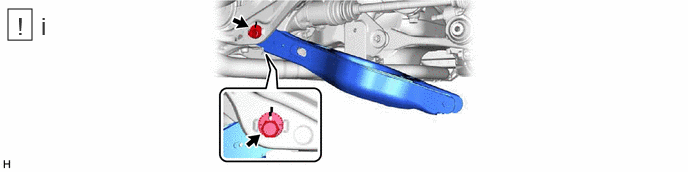

   1. Install the rear No. 1 suspension arm assembly RH with the 2 bolts.

      Torque: 73 N*m (744 kgf*cm, 54 ft.*lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

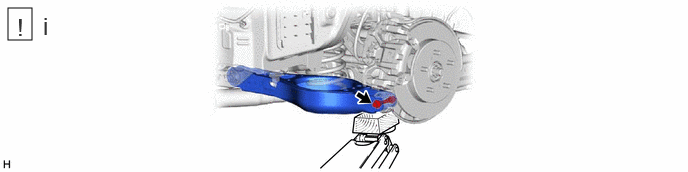

   1. Install the rear No. 2 suspension arm assembly RH (rear axle carrier sub-assembly side) with the bolt.

      Torque: 73 N*m (744 kgf*cm, 54 ft.*lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

Refer to INSTALLATION [12/2022 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   -

   -

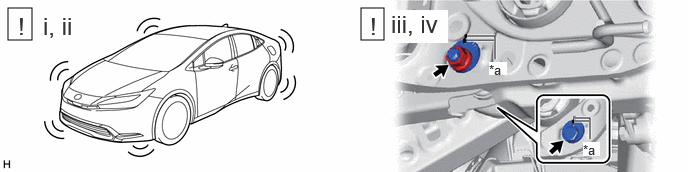

   1. Lower the vehicle to the ground.
   2. Bounce the vehicle up and down at the corners to stabilize the rear suspension.
   3. Align the matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.
   4. Fully tighten the nut.

      Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

      NOTE:

      • Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
      • Make sure that the vehicle is unloaded when fully tightening the nut.

Refer to PROCEDURE - Step 7 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 7 [03/2023 - ]

Refer to PROCEDURE - Step 8 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 8 [03/2023 - ]

Refer to ADJUSTMENT [12/2022 - 03/2023] , or refer to ADJUSTMENT [03/2023 - ]
