Disassembly [12/2022 - ]: Procedure

  1. REMOVE HEADLIGHT ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

  2. REMOVE FRONT BUMPER SIDE SUPPORT

    Refer to PROCEDURE - Step 32 [12/2022 - 01/2025] , or refer to PROCEDURE - Step 30 [01/2025 - ]

  3. REMOVE WINDSHIELD LOWER OUTSIDE MOULDING
    See step  1 [12/2022 - 03/2023] See step  1 [03/2023 - ]
  4. REMOVE COWL WATER EXTRACT SHIELD

    Refer to PROCEDURE - Step 7

  5. REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY
    See step  1
  6. REMOVE WHEEL ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

  7. REMOVE FRONT WHEEL OPENING EXTENSION PAD

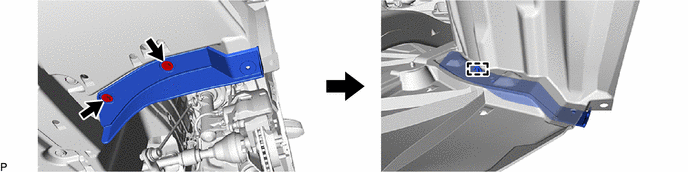

    1. GTY1156633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT FENDER LINER

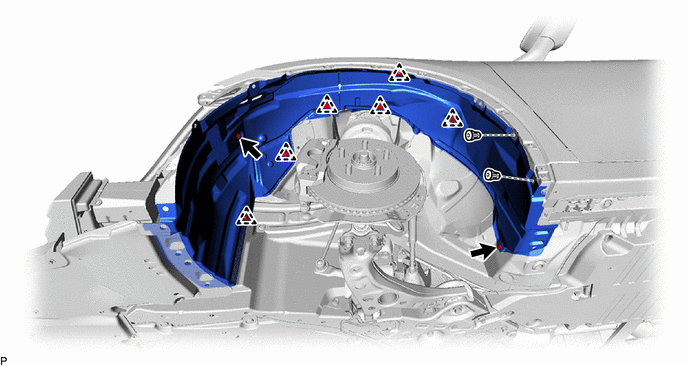

    1. GTY1139377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

  10. REMOVE FRONT FENDER SIDE PANEL PROTECTOR

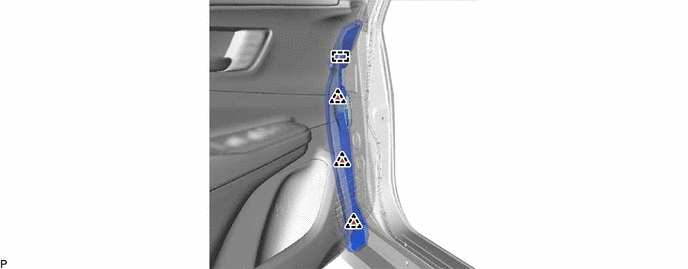

    1. GTY1156635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT FENDER SUB-ASSEMBLY

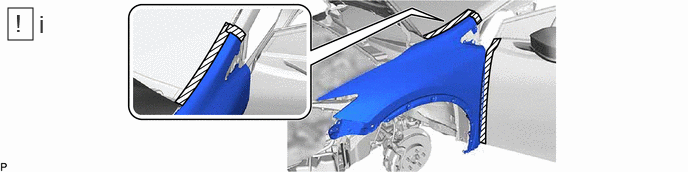

    1. GTY1159139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the front fender sub-assembly as shown in the illustration.

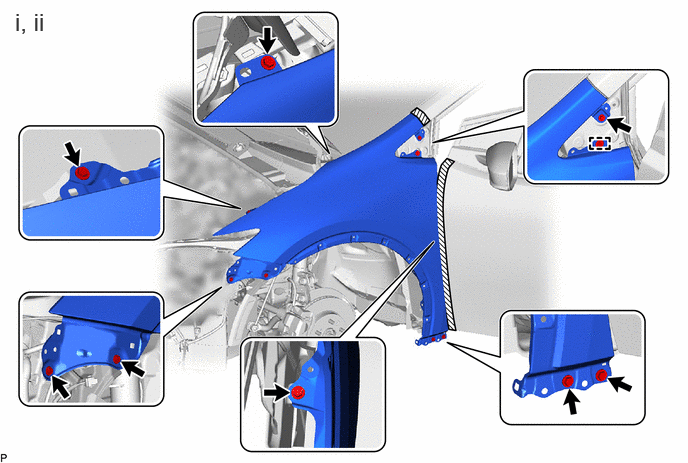

    2. GTY1157504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 8 bolts.
      2. Disengage the guide to remove the front fender sub-assembly.
  12. REMOVE NO. 2 FRONT SIDE AIR GUIDE

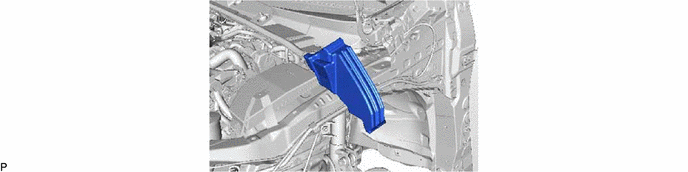

    1. GTY1148597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
