Removal [02/2024 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to REMOVAL [02/2024 - ]

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  2

  3. REMOVE FRONT BUMPER GUARD BASE COVER

    Refer to PROCEDURE - Step 5

  4. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  5. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  6. REMOVE WHEEL ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  7. REMOVE REAR QUARTER PANEL MUDGUARD RH
    1. Use the same procedure described for the LH side.

      Refer to REMOVAL [02/2024 - ]

  8. REMOVE REAR BUMPER SIDE SEAL RH

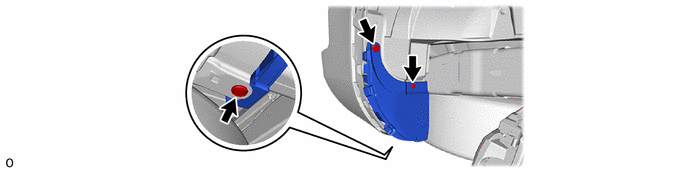

    1. GTY1223070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR WHEEL HOUSE LINER RH

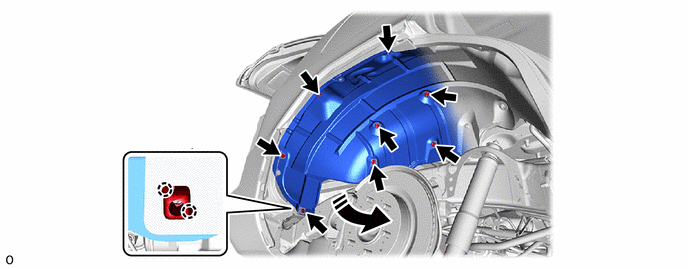

    1. GTY1224937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  10. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to REMOVAL [02/2024 - ]

  11. REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 9

  12. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 10

  13. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 11

  14. REMOVE FRONT DECK FLOOR BOX (w/o Rear No. 2 Seat)
    Refer to PROCEDURE - Step 12
  15. REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 13

  16. REMOVE REAR FLOOR BOARD REAR RH (w/o Rear No. 2 Seat)
    1. Use the same procedure described for the LH side.
  17. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 15

  18. REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 16

  19. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 17

  20. REMOVE NO. 1 REAR FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 18

  21. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 29

  22. REMOVE OUTER LAP BELT ANCHOR COVER

    Refer to PROCEDURE - Step 16

  23. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR)
    1. Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 17

  24. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)
    1. Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 18

  25. REMOVE NO. 1 TONNEAU COVER HOLDER CAP

    Refer to PROCEDURE - Step 49

  26. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 50

  27. REMOVE NO. 1 CUP HOLDER
    Refer to PROCEDURE - Step 52
  28. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 54

  29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Refer to PROCEDURE - Step 56

  30. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY RH
    1. Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 59

  31. REMOVE COOLER PLATE

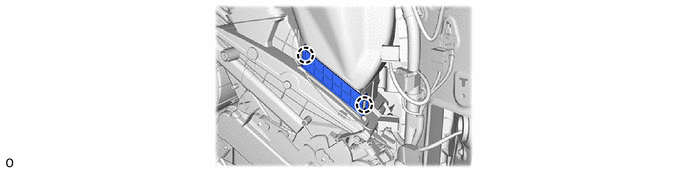

    1. GTY1225905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE NO. 2 ROOF SIDE AIR DUCT RH

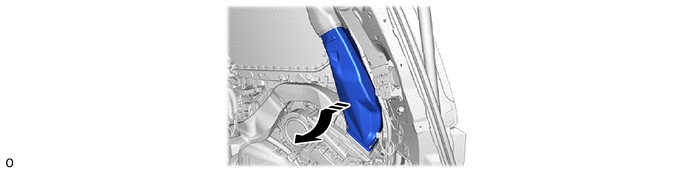

    1. GTY1226786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  33. REMOVE REAR NO. 6 AIR DUCT

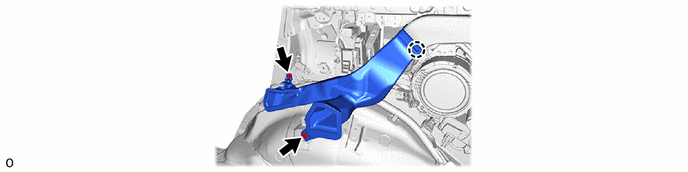

    1. GTY1225913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE REAR NO. 5 AIR DUCT

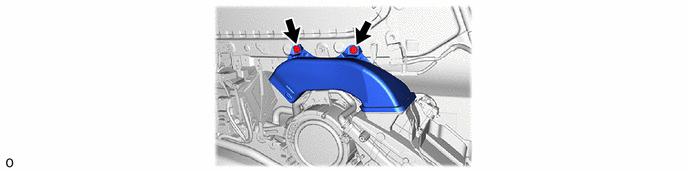

    1. GTY1225910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT

    Refer to PROCEDURE - Step 44

  36. DISCONNECT INLET HEATER WATER HOSE

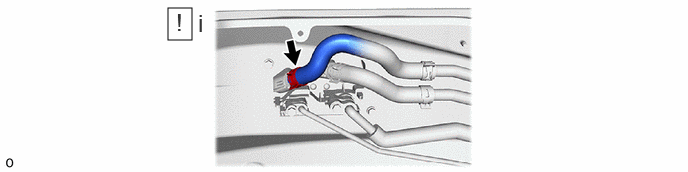

    1. GTY1227062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, grip the claws of the clip and slide the clip to disconnect the inlet heater water hose.
        NOTE:
        • Do not apply excessive force to the inlet heater water hose.
        • Prepare a container or cloth in case the coolant leaks.
  37. DISCONNECT OUTLET HEATER WATER HOSE

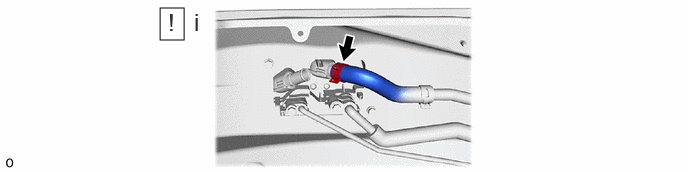

    1. GTY1225065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, grip the claws of the clip and slide the clip to disconnect the outlet heater water hose.
        NOTE:
        • Do not apply excessive force to the outlet heater water hose.
        • Prepare a container or cloth in case the coolant leaks.
  38. DISCONNECT NO. 2 LIQUID TUBE

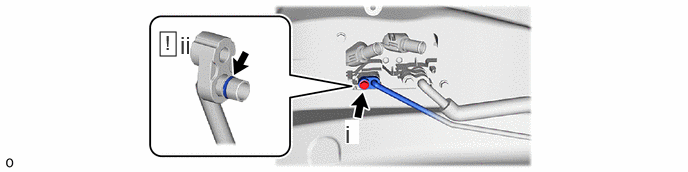

    1. GTY1223137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the No. 2 iquid tube.
      2. Remove the O-ring from the No. 2 iquid tube.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

  39. DISCONNECT NO. 1 SUCTION TUBE

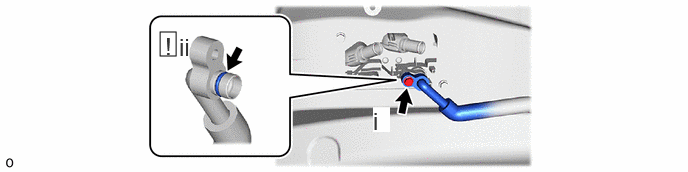

    1. GTY1226589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the No. 1 suction tube.
      2. Remove the O-ring from the No. 1 suction tube.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

  40. REMOVE REAR COOLING UNIT ASSEMBLY

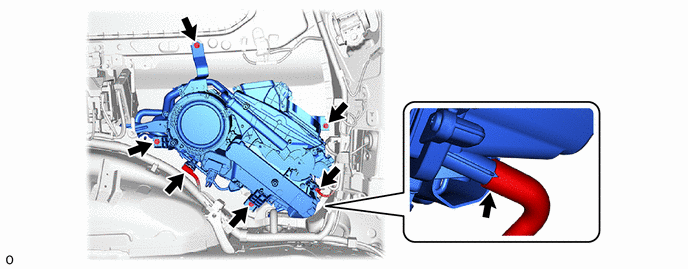

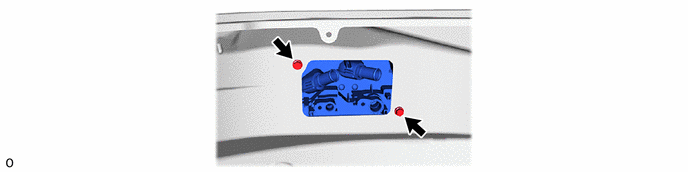

    1. GTY1225909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1225896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE NO. 4 COOLER UNIT DRAIN HOSE

    HINT:

    Perform this procedure only when replacement of the No. 4 cooler unit drain hose is necessary.

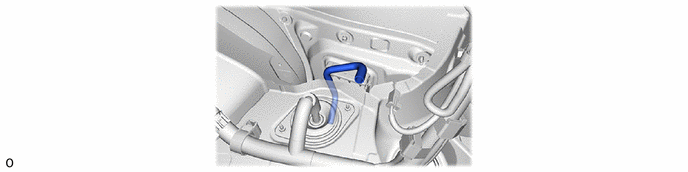

    1. GTY1225894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE DRAIN HOSE GROMMET

    HINT:

    Perform this procedure only when replacement of the drain hose grommet is necessary.

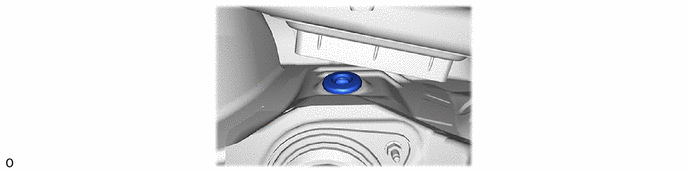

    1. GTY1225895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  44. REMOVE NO. 1 ROOF SIDE AIR DUCT RH

    HINT:

    Perform this procedure only when replacement of the rear No. 1 roof side air duct RH is necessary.

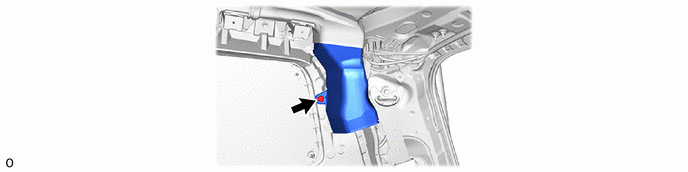

    1. GTY1225892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE REAR NO. 1 ROOF AIR DUCT

    HINT:

    Perform this procedure only when replacement of the rear No. 1 roof air duct is necessary.

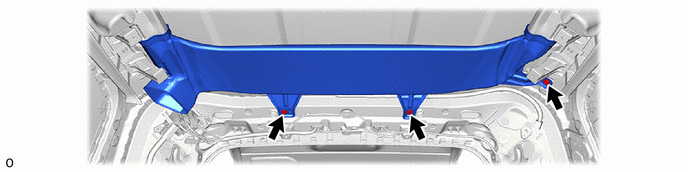

    1. GTY1225893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE NO. 2 INNER COOLER DUCT LH

    HINT:

    Perform this procedure only when replacement of the No. 2 inner cooler duct LH is necessary.

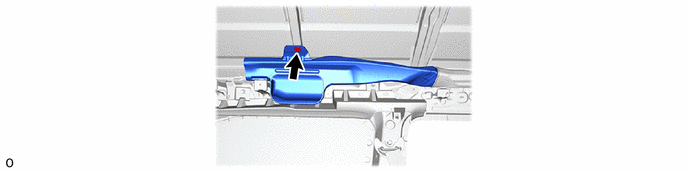

    1. GTY1225898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE NO. 2 INNER COOLER DUCT RH

    HINT:

    Perform this procedure only when replacement of the No. 2 inner cooler duct RH is necessary.

    1. Use the same procedure described for the LH side.
  48. REMOVE NO. 1 INNER COOLER DUCT LH

    HINT:

    Perform this procedure only when replacement of the No. 1 inner cooler duct LH is necessary.

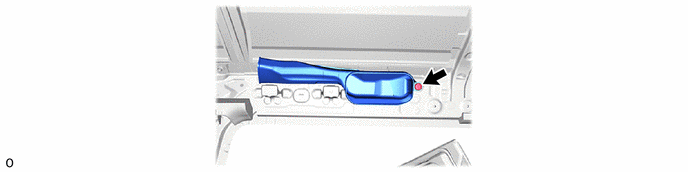

    1. GTY1225901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE NO. 1 INNER COOLER DUCT RH

    HINT:

    Perform this procedure only when replacement of the No. 1 inner cooler duct RH is necessary.

    1. Use the same procedure described for the LH side.
