Disassembly [02/2024 - ]: Procedure

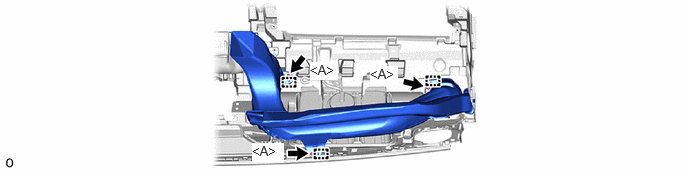

  1. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. GTY1222697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

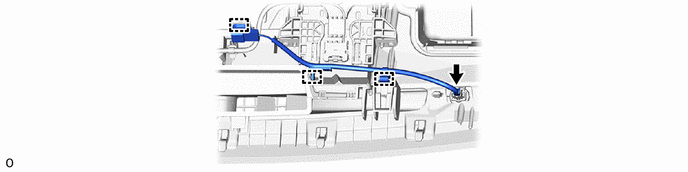

  2. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. GTY1222872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

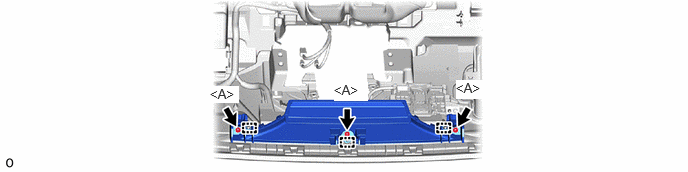

  3. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. GTY1220862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

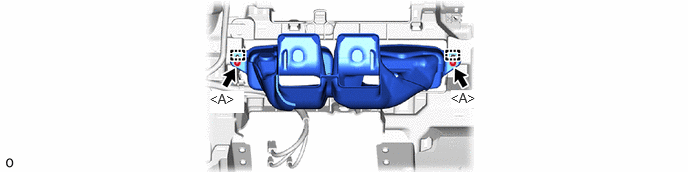

  4. REMOVE NO. 3 HEATER TO REGISTER DUCT
    1. GTY1220164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 6

  7. REMOVE ANTENNA DIVIDER (w/ Antenna Divider)

    Refer to PROCEDURE - Step 6

  8. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    Refer to PROCEDURE - Step 5
  9. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    Refer to PROCEDURE - Step 6

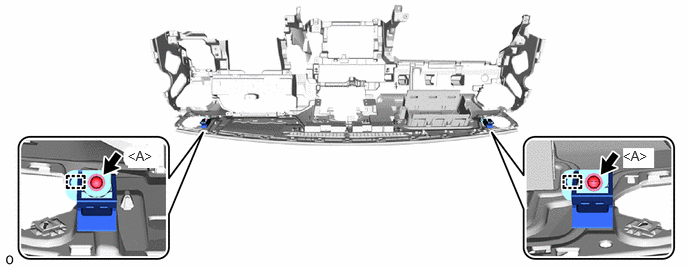

  10. REMOVE NO. 1 INSTRUMENT PANEL PIN
    1. GTY1220237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

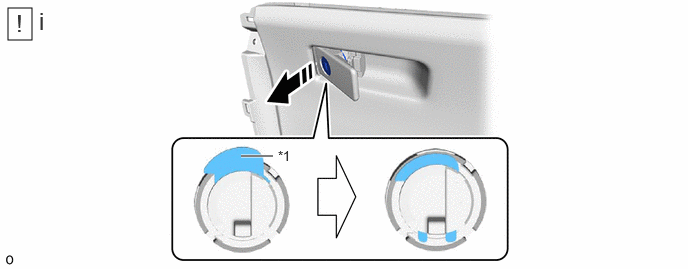

  11. REMOVE GLOVE COMPARTMENT LOCK CYLINDER
    1. GTY1223372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cylinder Lock - -
      Remove in this Direction - -
      1. Press the cylinder lock to release it and pull out the glove compartment lock cylinder from the glove compartment door lock sub-assembly to remove it as shown in the illustration.
  12. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. GTY1217265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
