Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [02/2024 - ]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE NO. 2 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 1

  4. REMOVE NO. 2 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 2

  5. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 3

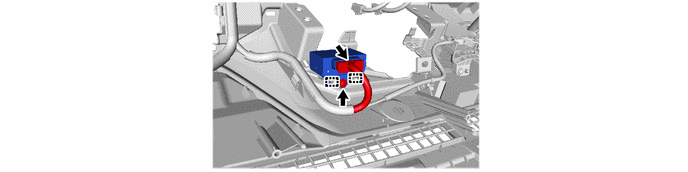

  6. REMOVE ANTENNA DIVIDER
    1. GTY1224381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
