Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [02/2024 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  4. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  5. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7

  6. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 9

  7. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER

    Refer to PROCEDURE - Step 11

  8. REMOVE UPPER CONSOLE PANEL ASSEMBLY

    Refer to PROCEDURE - Step 4

  9. REMOVE INTEGRATION CONTROL AND PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 15

  11. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 13

  12. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  13. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    WARNING:
    • When storing the lower No. 1 instrument panel airbag assembly, keep the airbag deployment side facing upward.
      GTY813792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If the airbag deploys for any reason, it may cause a serious accident.
    1. GTY1211069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check that the ignition switch is off.
      2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
        WARNING:
        • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
        • If the airbag deploys for any reason, it may cause a serious accident.

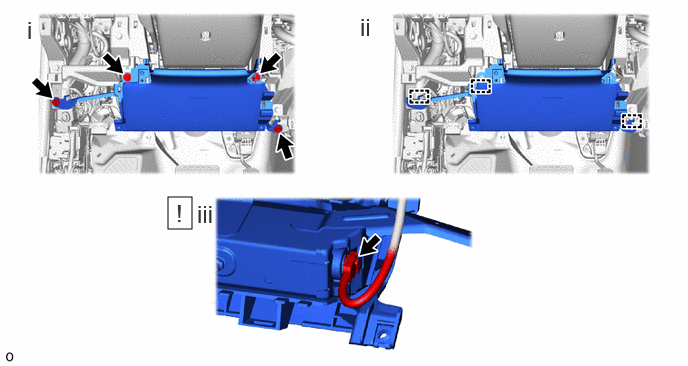

    2. GTY1223595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 bolts.
      2. Detach the hook to remove the lower No. 1 instrument panel airbag assembly.
      3. Disconnect the airbag connector.
        NOTE:

        When disconnecting any airbag connector, take care not to damage the airbag wire harness.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector: Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]
