Disassembly [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    When removing parts with double-sided tape applied, heat the portion of the parts with tape residue with a heat light if the double-sided tape is difficult to remove.

    Standard Value

    Part Temperature
    Metal parts 40 to 60°C (104 to 140°F)
    Resin parts 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the part excessively.

  2. REMOVE NO. 2 BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY (w/ Digital Key System)

    Refer to PROCEDURE - Step 4

  3. REMOVE REAR CENTER ULTRASONIC SENSOR

    Refer to PROCEDURE - Step 2

  4. REMOVE REAR CORNER ULTRASONIC SENSOR

    Refer to PROCEDURE - Step 3

  5. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER
    Refer to PROCEDURE - Step 4
  6. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER
    Refer to PROCEDURE - Step 5
  7. REMOVE NO. 3 LUGGAGE ROOM WIRE

    HINT:

    The illustration is an example, so the details may differ.

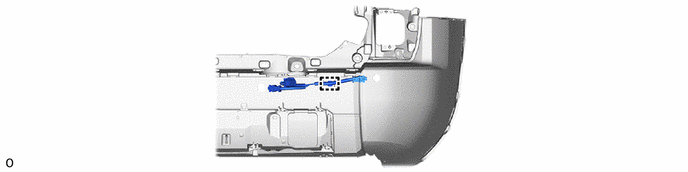

    1. GTY1220198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

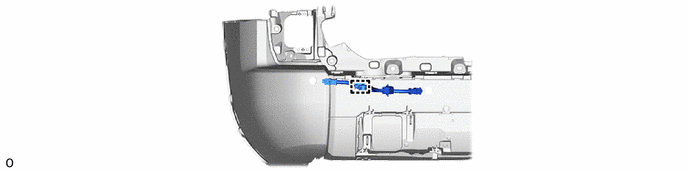

  8. REMOVE NO. 2 LUGGAGE ROOM WIRE
    1. GTY1220197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ULTRASONIC SENSOR CLIP

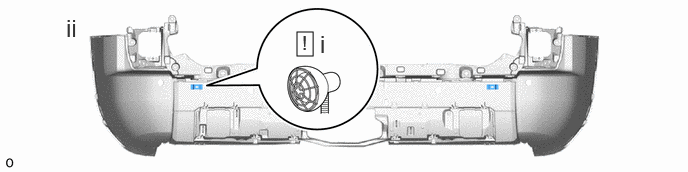

    1. GTY1224807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the ultrasonic sensor clip using a heat light.
      2. Remove the 2 ultrasonic sensor clips.
  10. REMOVE SIDE BUMPER GUARD LH

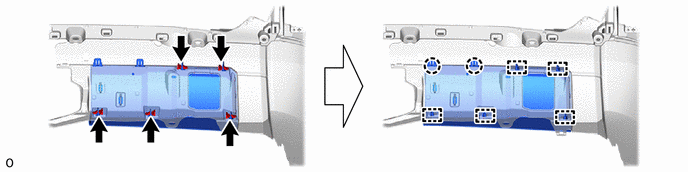

    1. GTY1223206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SIDE BUMPER GUARD RH
    1. Use the same procedure described for the LH side.
  12. REMOVE REAR BUMPER CENTER PAD
    1. GTY1226602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the rear bumper center pad using a heat light.
      2. Remove the rear bumper center pad.
  13. REMOVE MOULDING TAPE

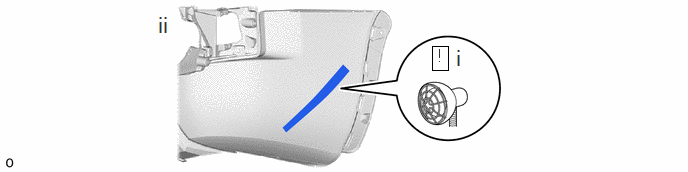

    1. GTY1221053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the moulding tape using a heat light.
      2. Remove the moulding tape.
    2. Use the same procedure for the other side.
  14. REMOVE REAR BUMPER PLATE RH
    1. GTY1223210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR BUMPER ENERGY ABSORBER

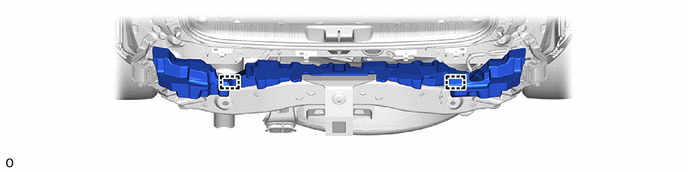

    1. GTY1220203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR BUMPER SIDE MOUNTING BRACKET ASSEMBLY LH

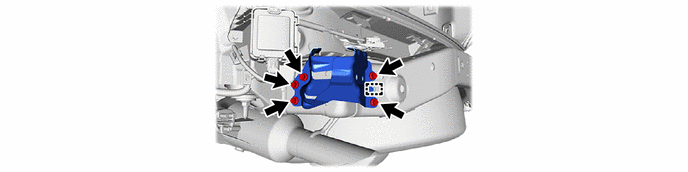

    1. GTY1223215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR BUMPER SIDE MOUNTING BRACKET ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  18. REMOVE REAR BUMPER BAR REINFORCEMENT LH

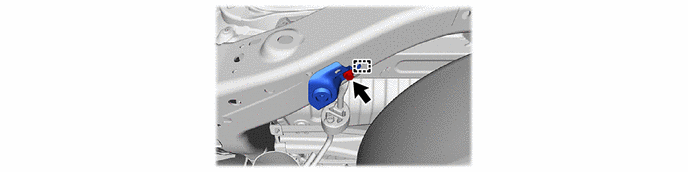

    1. GTY1226648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR BUMPER BAR REINFORCEMENT RH
    1. Use the same procedure described for the LH side.
  20. REMOVE REAR BUMPER SIDE SUPPORT LH

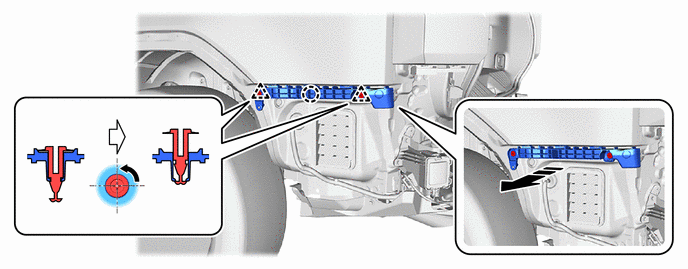

    1. GTY1223684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Rotation Direction
  21. REMOVE REAR BUMPER SIDE SUPPORT RH
    1. Use the same procedure described for the LH side.

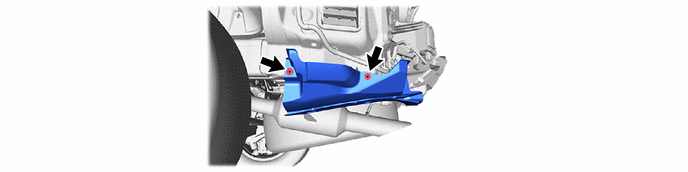

  22. REMOVE NO. 2 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
    1. GTY1223214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
    1. Use the same procedure described for the No. 2 luggage compartment side cover protector.
