Removal [02/2024 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE REAR CENTER ULTRASONIC SENSOR

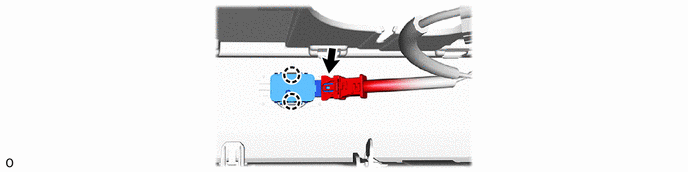

    1. GTY1226381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. The orientation for the RH side is the opposite of the LH side.
  3. REMOVE REAR CORNER ULTRASONIC SENSOR

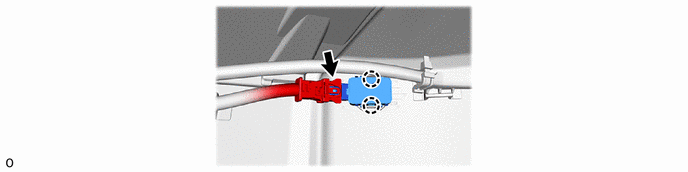

    1. GTY1221958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. The orientation for the RH side is the opposite of the LH side.
  4. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

    HINT:

    Perform this procedure only when replacement of the rear center ultrasonic sensor retainer is necessary.

    Standard Value

    Part Temperature
    Rear Bumper Assembly 40 to 60 °C (104 to 140 °F)
    Rear Center Ultrasonic Sensor Retainer 40 to 60 °C (104 to 140 °F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY1073404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear bumper assembly and rear center ultrasonic sensor retainer excessively.

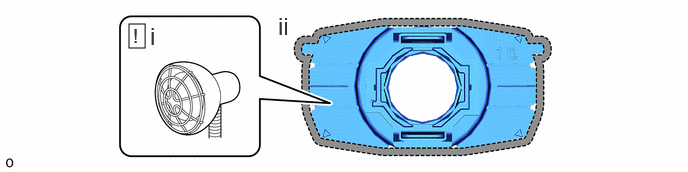

    1. GTY1223156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Heated Area - -
      1. Heat the adhesive of the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light.
      2. Remove the rear center ultrasonic sensor retainer.
    2. The orientation for the RH side is the opposite of the LH side.
  5. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

    HINT:

    Perform this procedure only when replacement of the rear corner ultrasonic sensor retainer is necessary.

    Standard Value

    Part Temperature
    Rear Bumper Assembly 40 to 60 °C (104 to 140 °F)
    Rear Corner Ultrasonic Sensor Retainer 40 to 60 °C (104 to 140 °F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear bumper assembly and rear corner ultrasonic sensor retainer excessively.

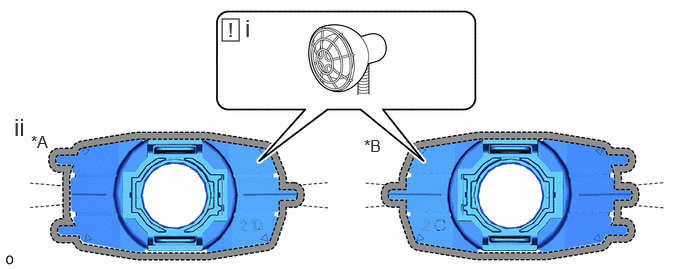

    1. GTY1226496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
      Heated Area - -
      1. Heat the adhesive of the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.
      2. Remove the rear corner ultrasonic sensor retainer.
    2. The orientation for the RH side is the opposite of the LH side.
  6. REMOVE ULTRASONIC SENSOR CUSHION SET

    HINT:

    Perform this procedure only when replacement of the ultrasonic sensor cushion set is necessary.

    1. GTY1140354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
