Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

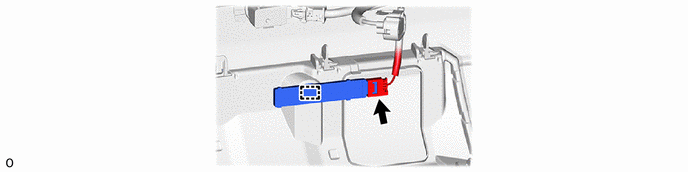

  4. REMOVE NO. 2 BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY
    1. GTY1223306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
