Removal [01/2019 - 09/2022]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 9 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 9 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 9 [06/2021 - 09/2022]

  2. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 10 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 10 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 10 [06/2021 - 09/2022]

  3. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

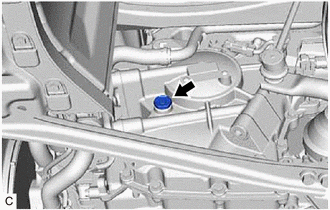

    1. Remove the refill plug and gasket from the rear transaxle case sub-assembly.
      GTY848278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle case sub-assembly, and drain the fluid.
      GTY817414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a 6 mm hexagon socket wrench, remove the overflow (CVT) tube from the transaxle case sub-assembly.
      GTY896283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Overflow (CVT) Tube

      HINT:

      Removing the overflow (CVT) tube will drain all fluid in the transaxle case sub-assembly.

    4. Using a 6 mm hexagon socket wrench, install the overflow (CVT) tube to the transaxle case sub-assembly.

      Torque: 0.8 N.m (8 kgf/cm, 7 in.lbf)

    5. Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle case sub-assembly.

      HINT:

      Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.

    6. Temporarily install the gasket and refill plug to the rear transaxle case sub-assembly.

      HINT:

      Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.

  4. REMOVE RADIATOR SUPPORT OPENING COVER
  5. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 5 [06/2018 - 09/2019] , or refer to PROCEDURE - Step 6 [09/2019 - 09/2022]

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2 [06/2018 - 09/2019] , or refer to PROCEDURE - Step 3 [09/2019 - ]

  7. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 7 [03/2019 - 09/2022]

  9. REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY

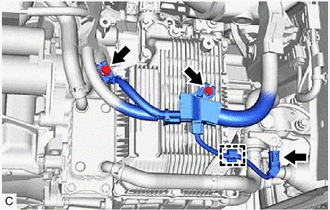

    1. Disconnect the flow shutting valve (water valve) connector.
      GTY783102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to disconnect the engine wire from the No. 1 water hose clamp bracket.
    3. Remove the 2 bolts to disconnect the engine wire from the continuously variable transaxle assembly.

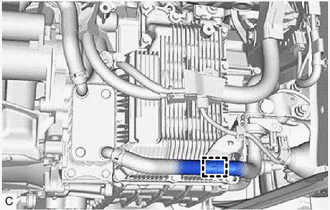

    4. Disengage the hose clamp to disconnect the No. 4 water by-pass hose from the No. 1 water hose clamp bracket.
      GTY783103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

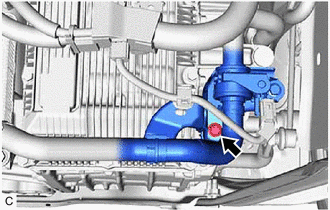

    5. Remove the bolt to disconnect the No. 1 water hose clamp bracket from the continuously variable transaxle assembly.
      GTY829023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

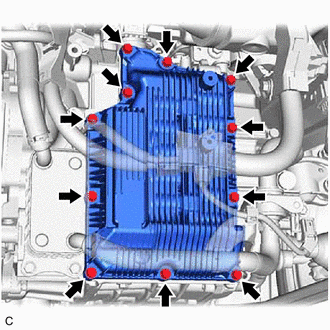

    6. Remove the 11 bolts and transaxle side cover sub-assembly from the transaxle case sub-assembly.
      GTY783104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the O-ring from the transaxle side cover sub-assembly.
      GTY787472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
