Replacement [06/2018 - 11/2022]: Procedure

Refer to PROCEDURE - Step 9 [06/2018 - 01/2019] , or refer to PROCEDURE - Step 9 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 9 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 9 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 9 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - 11/2022]

Refer to PROCEDURE - Step 10 [06/2018 - 01/2019] , or refer to PROCEDURE - Step 10 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 10 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 10 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - 11/2022]

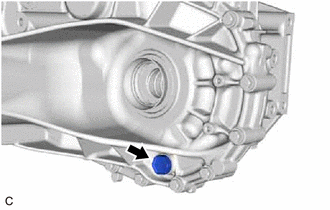

1. Remove the manual transmission filler plug and gasket from the manual transmission case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

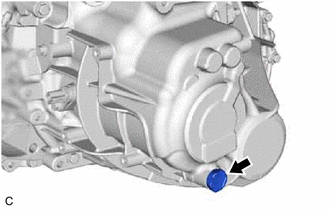

2. Remove the manual transmission drain plug and gasket to drain the manual transaxle oil.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install a new gasket and the manual transmission drain plug to the manual transmission case.

   Torque: 39.2 N.m (400 kgf/cm, 29 ft.lbf)

1. Add manual transaxle oil until the oil level is between 0 and 5 mm (0.197 in.) from the bottom lip of the manual transmission filler plug opening.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	0 to 5 mm (0 to 0.197 in.)

   Manual Transaxle Oil

   "Toyota Genuine Manual Transmission Gear Oil LV" or "API GL-4 and SAE 75W"

   Standard Capacity

   1.5 liters (1.6 US qts, 1.3 Imp. qts)

2. Install a new gasket and the manual transmission filler plug to the manual transmission case.

   Torque: 39.2 N.m (400 kgf/cm, 29 ft.lbf)

   NOTE:

   • When adding manual transaxle oil, make sure that the vehicle is level.
   • An excessively large or small amount of manual transaxle oil may cause problems.
   • After adding manual transaxle oil, drive the vehicle and recheck the oil level.

Refer to PROCEDURE - Step 80 [06/2018 - 01/2019] , or refer to PROCEDURE - Step 80 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 80 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 83 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 83 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 83 [09/2022 - 11/2022]

Refer to PROCEDURE - Step 82 [06/2018 - 01/2019] , or refer to PROCEDURE - Step 82 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 82 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 85 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 85 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 85 [09/2022 - 11/2022]
