Removal [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 7

  4. REMOVE STARTER ASSEMBLY

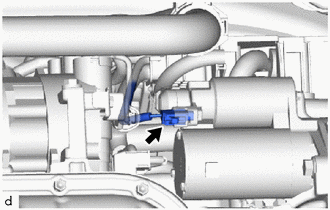

    1. Disconnect the starter assembly connector.
      GTY915051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

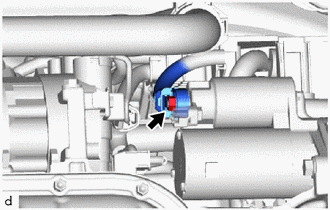

    2. Open the terminal cap.
      GTY915047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut to disconnect the wire harness from terminal 30.

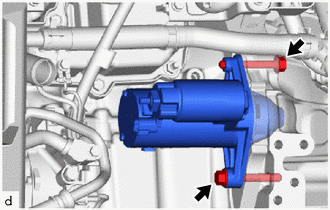

    4. Remove the 2 bolts and starter assembly.
      GTY915046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
