Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL RH
Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022] , or refer to REMOVAL [09/2022 - ]
REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
See step 7 [01/2019 - 03/2019], or see step 7 [03/2019 - 09/2022], or see step 7 [09/2022 - 11/2022]
REMOVE REAR ENGINE UNDER COVER RH
See step 9 [01/2019 - 03/2019], or see step 9 [03/2019 - 09/2022], or see step 9 [09/2022 - 11/2022]
REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 11 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 11 [09/2022 - 11/2022]
REMOVE V-RIBBED BELT
Refer to PROCEDURE - Step 2

REMOVE CRANKSHAFT PULLEY

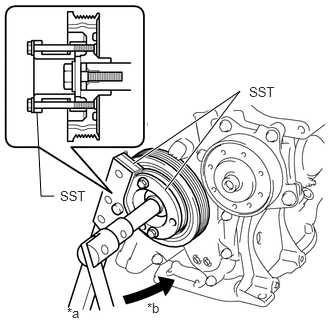

Using SST to hold the crankshaft pulley, loosen the crankshaft pulley set bolt. Further loosen the crankshaft pulley set bolt until 2 or 3 threads remain screwed into the crankshaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

SST: 09213-54015
1. 91551-00850
SST: 09330-00021

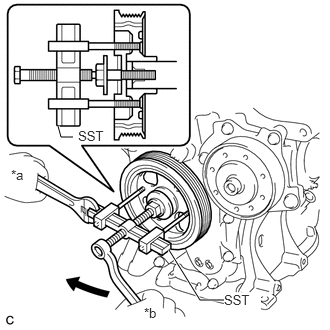

Using SST and the crankshaft pulley set bolt, remove the crankshaft pulley and crankshaft pulley set bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

SST: 09950-50013
1. 09951-05010
2. 09952-05010
3. 09953-05020
4. 09954-05021

HINT:

Apply lubricant to the threads and end of SST.

REMOVE TIMING CHAIN COVER OIL SEAL

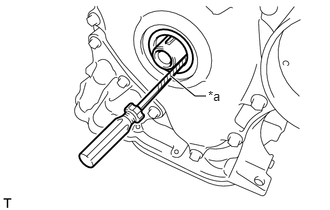

Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain cover oil seal.

*a	Protective Tape

NOTE:

After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
