Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 9 [09/2024 - ]

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 2 [09/2024 - ]

  3. REMOVE V-RIBBED BELT

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

  4. REMOVE WATER PUMP PULLEY

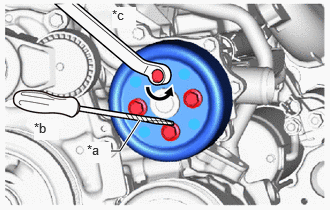

    1. Using a screwdriver or equivalent with its tip wrapped in protective tape, hold the water pump pulley.
      GTY1107435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Hold
      *c Turn
    2. Remove the 4 bolts and water pump pulley.
  5. REMOVE ENGINE WATER PUMP ASSEMBLY

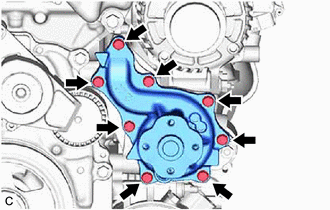

    1. Remove the 8 bolts, engine water pump assembly and water pump gasket from the water inlet housing.
      GTY1105596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
