Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 12 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 20 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 25 [09/2024 - ]

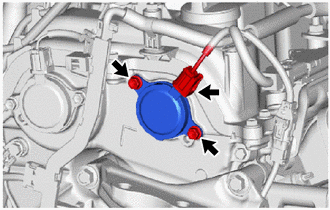

REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side)

Disconnect the camshaft timing oil control solenoid assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and camshaft timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
NOTE:
If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

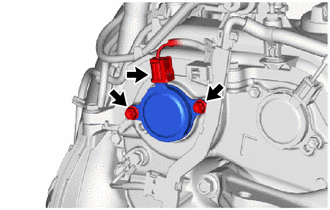

REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side)

Disconnect the camshaft timing oil control solenoid assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and camshaft timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
NOTE:
If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE O-RING

HINT:

Perform this procedure only when replacement of the O-ring is necessary.

Remove the O-ring from the camshaft timing oil control solenoid assembly.

NOTE:

When removing the O-ring, be careful not to damage the O-ring groove of the camshaft timing oil control solenoid assembly.
If the O-ring groove of the camshaft timing oil control solenoid assembly is damaged, replace the camshaft timing oil control solenoid assembly with a new one.
