Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 3

  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 4

  5. REMOVE CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL
    Refer to PROCEDURE - Step 5
  6. REMOVE INSTRUMENT SIDE PANEL RH
    Refer to PROCEDURE - Step 8
  7. REMOVE INSTRUMENT PANEL ORNAMENT

    Refer to PROCEDURE - Step 9

  8. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  9. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  10. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
    Refer to PROCEDURE - Step 12
  11. REMOVE NAVIGATION RECEIVER WITH BRACKET

    Refer to PROCEDURE - Step 8

  12. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

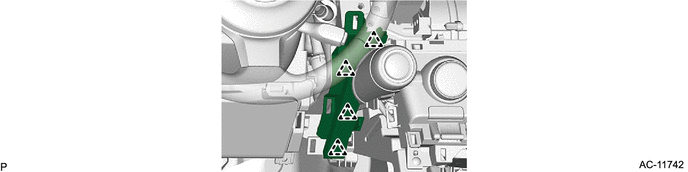

    1. GTY1049717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

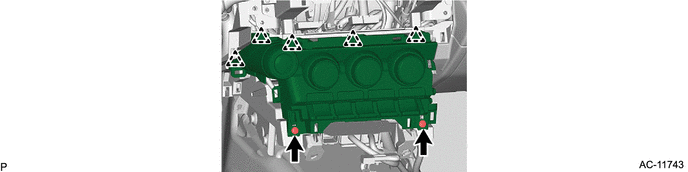

    2. GTY1049720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector, and remove the air conditioning control assembly.
  13. REMOVE ENGINE SWITCH

    Refer to PROCEDURE - Step 2
