Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. REMOVE CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL
    Refer to PROCEDURE - Step 5
  3. REMOVE INSTRUMENT SIDE PANEL RH
    Refer to PROCEDURE - Step 8
  4. REMOVE INSTRUMENT PANEL ORNAMENT

    Refer to PROCEDURE - Step 9

  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  7. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
    Refer to PROCEDURE - Step 12
  8. REMOVE NAVIGATION RECEIVER WITH BRACKET

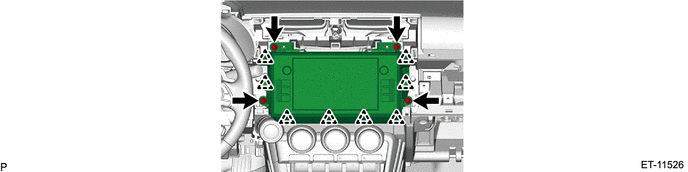

    1. GTY1052115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 bolts and release the 8 clips.
      2. Disconnect the connectors, and then remove the navigation receiver with bracket.
