Removal [09/2021 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 8 [11/2022 - 11/2023]

  2. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 9 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 11/2023]

  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  4. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

    Refer to PROCEDURE - Step 3

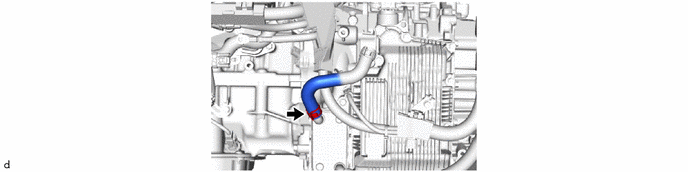

  5. DISCONNECT INLET WATER HOSE
    1. GTY1035575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

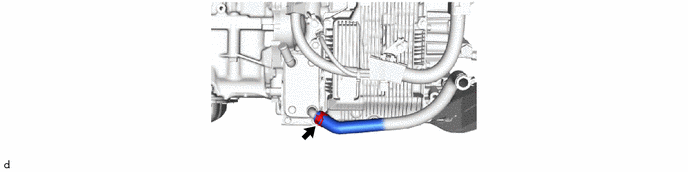

  6. DISCONNECT NO. 2 WATER BY-PASS HOSE
    1. GTY1035593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

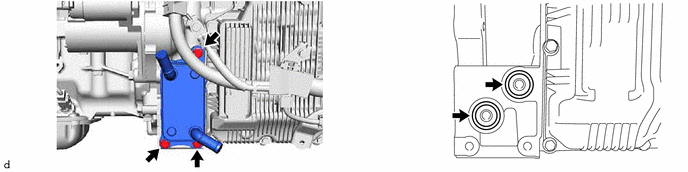

  7. REMOVE TRANSMISSION OIL COOLER
    1. GTY1034376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
