Removal [09/2021 - 11/2023]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 8 [11/2022 - 11/2023]
- REMOVE REAR ENGINE UNDER COVER LH
Refer to PROCEDURE - Step 9 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 11/2023]
- DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

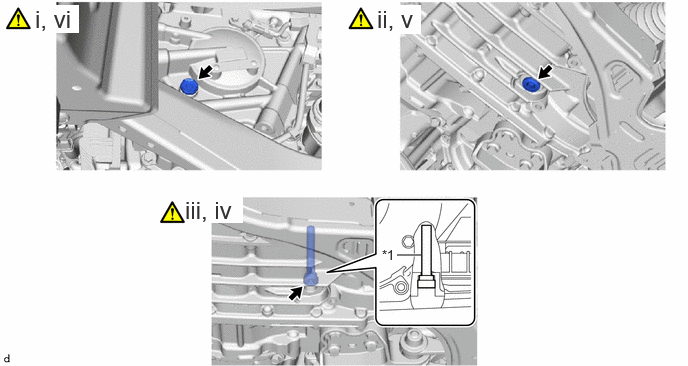

*1 Overflow (CVT) Tube - - - Remove the refill plug and gasket from the rear transaxle case sub-assembly.
- Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle case sub-assembly, and drain the fluid.
- Using a 6 mm hexagon socket wrench, remove the overflow (CVT) tube from the transaxle case sub-assembly.
HINT:
Removing the overflow (CVT) tube will drain all fluid in the transaxle case sub-assembly.
- Using a 6 mm hexagon socket wrench, install the overflow (CVT) tube to the transaxle case sub-assembly.
Torque: 0.8 N.m (8 kgf/cm, 7 in.lbf)
- Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle case sub-assembly.
HINT:
Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.
- Temporarily install the gasket and refill plug to the rear transaxle case sub-assembly.
HINT:
Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.
- REMOVE INLET NO. 1 AIR CLEANER
Refer to PROCEDURE - Step 6
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 3
- REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE AIR CLEANER CASE SUB-ASSEMBLY
Refer to PROCEDURE - Step 6 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 6 [11/2022 - 11/2023]

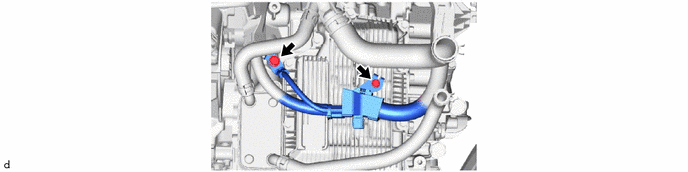

- DISCONNECT ENGINE WIRE

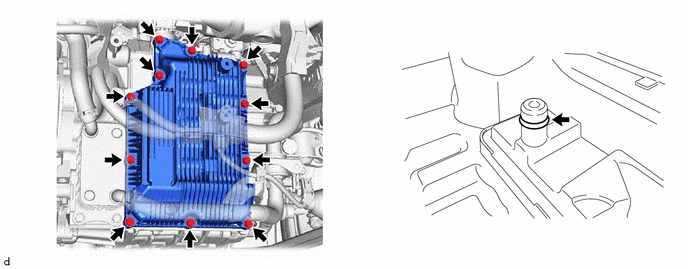

- REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY
