Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

SECURE VEHICLE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fully apply the parking brake and chock a wheel.
WARNING:
- Make sure to apply the parking brake and chock a wheel before performing this procedure.
- If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

REMOVE CONSOLE BOX ASSEMBLY
Refer to PROCEDURE - Step 15 [11/2022 - 11/2023] , or refer to PROCEDURE - Step 14 [11/2023 - ]
REMOVE NO. 2 CONSOLE BOX DUCT
Refer to PROCEDURE - Step 22
REMOVE NO. 1 CONSOLE BOX DUCT
Refer to PROCEDURE - Step 23
REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 7

REMOVE TAIL EXHAUST PIPE ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 1

REMOVE FRONT FLOOR CENTER BRACE
Refer to PROCEDURE - Step 1

REMOVE FRONT EXHAUST PIPE ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 4

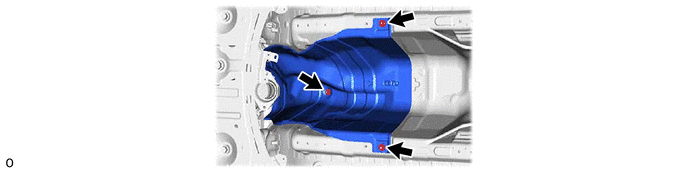

REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

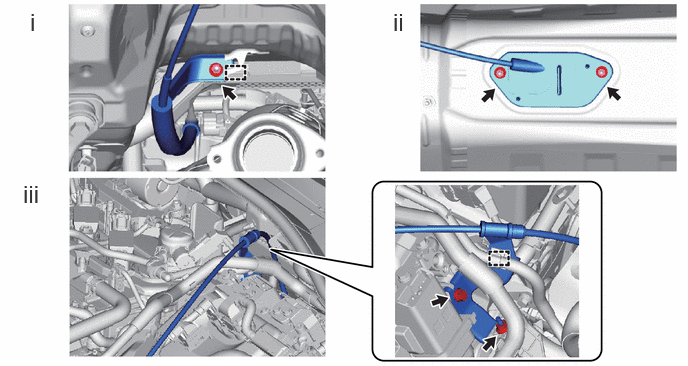

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)

See step 7

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)

See step 3

REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
