Installation [07/2020 - ]: Procedure

  1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
    1. Temporarily install the child restraint seat anchor bracket sub-assembly LH with the 2 bolts.

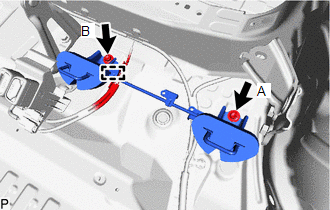

      GTY1013018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fully tighten the bolt (A) and then the bolt (B) to install the child restraint seat anchor bracket sub-assembly LH.

      Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

    3. Engage the clamp.
  2. INSTALL REAR SEATBACK ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 1

  3. INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 2

  4. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 3

  5. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 4

  6. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5

  7. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 6

  8. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
    1. Install the rear seat headrest assembly.
  9. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
    1. Install the rear seat headrest assembly.
  10. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 60 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 60 [10/2022 - ]

  11. INSTALL TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 61 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 61 [10/2022 - ]
