Installation [07/2020 - ]: Procedure

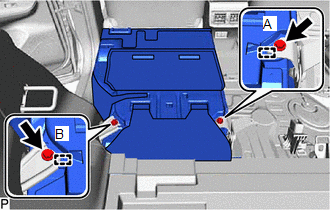

1. Place the rear seatback assembly LH in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

2. Engage the 2 guides.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Temporarily install the rear seatback assembly LH with the 2 bolts.
4. Fully tighten the bolt (A), and then the bolt (B) to install the rear seatback assembly LH.

   Torque: 36.8 N.m (375 kgf/cm, 27 ft.lbf)

5. Engage the 2 fasteners.
6. Engage the 2 clips.
7. Return the rear seatback assembly LH to its original position.

1. Place the rear seatback assembly RH in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

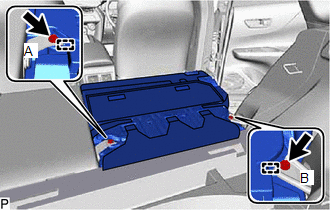

2. Engage the 2 guides.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Temporarily install the rear seatback assembly RH with the 2 bolts.
4. Fully tighten the bolt (A), and then the bolt (B) to install the rear seatback assembly RH.

   Torque: 36.8 N.m (375 kgf/cm, 27 ft.lbf)

5. Engage the 2 fasteners.
6. Engage the 3 clips.
7. Return the rear seatback assembly RH to its original position.

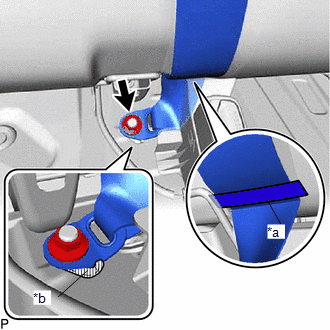

1. Pass the floor anchor part of the rear center seat outer belt assembly through the band of the rear seatback assembly RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Band
   *b	Protruding Part

2. Connect the floor anchor of rear center seat outer belt assembly with the nut.

   Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

   NOTE:

   Do not allow the anchor part of the rear center seat outer belt assembly to overlap the protruding parts of the floor panel.

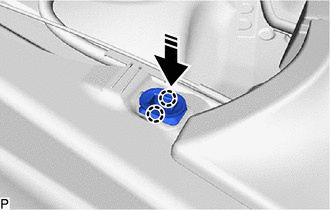

1. Engage the 2 claws to install a new rear seat cushion lock hook as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

   HINT:

   Use the same procedure for the RH side and LH side.

1. Place the rear seat cushion assembly in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

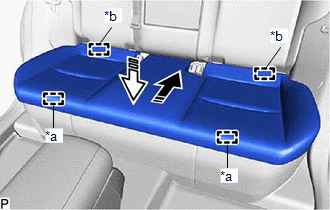

2. Engage the 2 rear seat cushion frame hooks on the rear side of the rear seat cushion assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Rear Seat Cushion Frame Hook (Front Side)
   *b	Rear Seat Cushion Frame Hook (Rear Side)
   	Install in this Direction (1)
   	Install in this Direction (2)

3. Engage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly as shown in the illustration to install the rear seat cushion assembly.
   NOTE:

   Confirm that the rear seat cushion assembly is securely installed.

1. Install the rear seat center headrest assembly.

1. Install the 2 rear seat headrest assemblies.

Refer to PROCEDURE - STEP 60 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 60 [10/2022 - ]

Refer to PROCEDURE - Step 61 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 61 [10/2022 - ]
