Disassembly [07/2020 - 12/2021]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [07/2020 - 10/2022]

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 6

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR DOOR INSIDE HANDLE BEZEL
    1. Using a moulding remover, disengage the 3 claws to remove the rear door inside handle bezel.
      GTY1013058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR DOOR ARMREST COVER
    1. Remove the rear door armrest cover.
      GTY1013055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
    1. Remove the 2 screws.
      GTY1013041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply protective tape to the rear door panel as shown in the illustration.
      GTY1012179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    3. Disengage the 8 clips as shown in the illustration.
      GTY1012882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    4. Disengage the 4 claws and 2 guides.
      GTY1013028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the connector.
      GTY1012703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Inside Locking Cable Assembly
      *2 Rear Door Lock Remote Control Cable Assembly
      Remove in this Direction
    6. Disconnect the rear door lock remote control cable assembly and rear door inside locking cable assembly as shown in the illustration to remove the rear door trim board sub-assembly.
  8. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    1. Remove the 10 screws.
      GTY1013025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the rear power window regulator switch assembly with rear door armrest base panel.
  9. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
    1. Disengage the 3 claws to remove the rear door inside handle sub-assembly as shown in the illustration.
      GTY1013145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  10. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
    1. Using a clip remover with its tip wrapped with protective tape, disengage the clip.
      GTY1012976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Disengage the guide and disconnect the rear door weatherstrip as shown in the illustration.
    3. Remove the rear door inner glass weatherstrip with rear door front belt seal as shown in the illustration.
      GTY1012565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  11. REMOVE REAR DOOR FRONT BELT SEAL
    1. Remove the rear door front belt seal from the rear door inner glass weatherstrip as shown in the illustration.
      GTY1012483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  12. REMOVE REAR DOOR REAR BELT SEAL
    1. Using a clip remover with its tip wrapped with protective tape, disengage the clip.
      GTY1012644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Disengage the guide and disconnect the rear door weatherstrip as shown in the illustration.
    3. Remove the rear door rear belt seal as shown in the illustration.
      GTY1012810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 4

  14. REMOVE REAR DOOR SERVICE HOLE COVER
    1. For Type A:
      1. Disconnect the connector.

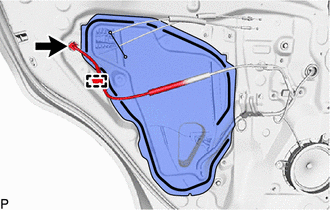

        GTY1013228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp.
      3. Remove the rear door service hole cover.

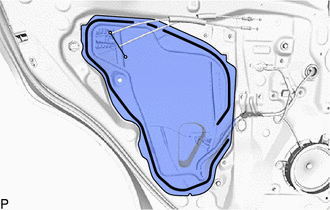

        GTY1012347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Remove any remaining butyl tape from the door.

    2. For Type B:
      1. Disconnect the connector.
        GTY1118442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp.
      3. Remove the rear door service hole cover.
        GTY1113014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Remove any remaining butyl tape from the door.

  15. REMOVE REAR DOOR FRAME GARNISH
    1. Disengage the 3 claws to remove the rear door frame garnish.
      GTY1012345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR DOOR GLASS RUN
    1. Remove the rear door glass run.
      GTY1012334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
    1. Lift up the rear door weatherstrip as shown in the illustration.
      GTY1013222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, screw and rear door window division bar sub-assembly.
      GTY1012332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR DOOR QUARTER WINDOW GLASS
    1. Remove the rear door quarter window glass as shown in the illustration.
      GTY1012712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP
    1. Remove the rear door quarter window weatherstrip from the rear door quarter window glass.
      GTY1012338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE HOLE PLUG
    1. Remove the hole plug.
      GTY1013223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR DOOR GLASS SUB-ASSEMBLY
    1. Connect the rear power window regulator switch assembly.
    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Turn the ignition switch to ON.
    4. Move the rear door glass sub-assembly so that the door glass bolts can be seen.
    5. Turn the ignition switch off.
    6. Disconnect the cable from the negative (-) auxiliary battery terminal.
    7. Disconnect the rear power window regulator switch assembly.
    8. Remove the 2 bolts.
      GTY1012337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      After the bolts are removed, do not allow the rear door glass sub-assembly to fall.

    9. Remove the rear door glass sub-assembly as shown in the illustration.
      NOTE:

      Do not damage the rear door glass sub-assembly.

      GTY1012732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  22. REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY
    1. Disconnect the connector.
      GTY1012317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 nuts and rear door window regulator assembly.
  23. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 16

  24. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.
      GTY1013208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a screwdriver with its tip wrapped with protective tape, disconnect the connector.
      GTY1012495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    3. Disengage the 2 claws and move the lever as shown in the illustration.
      GTY1012311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the rear door outside handle assembly as shown in the illustration.
      GTY1012873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  25. REMOVE REAR DOOR OUTSIDE HANDLE COVER
    1. Using a T30 "TORX" socket wrench, loosen the screw.
      GTY1012286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The screw cannot be removed because it is integrated into the rear door outside handle frame sub-assembly.

    2. Disengage the 2 claws to remove the rear door outside handle cover.
      GTY1012283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR DOOR FRONT OUTSIDE HANDLE PAD
    1. Disengage the 2 claws and guide to remove the rear door front outside handle pad.
      GTY1012280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR DOOR REAR OUTSIDE HANDLE PAD
    1. Disengage the 4 guides to remove the rear door rear outside handle pad.
      GTY1012269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. Using a T30 "TORX" socket wrench, remove the screw.
      GTY1012267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the rear door outside handle frame sub-assembly as shown in the illustration.
      GTY1013068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  29. REMOVE REAR DOOR CHECK ASSEMBLY
    1. Remove the bolt (A), 2 bolts (B) and rear door check assembly.
      GTY1012477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A)
      Bolt (B)
  30. REMOVE REAR DOOR WEATHERSTRIP
    1. Using a clip remover with its tip wrapped with protective tape, disengage the 2 clips.
      GTY1012274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover with its tip wrapped with protective tape, disengage the 22 clips and remove the rear door weatherstrip.
      GTY1012272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR DOOR NO. 3 WEATHERSTRIP
    1. Disengage the 5 clips to remove the rear door No. 3 weatherstrip.
      GTY1012238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE DOOR WINDOW FRAME MOULDING CLIP
    1. Disengage the 2 claws to remove the door window frame moulding clip.
      GTY1012250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE REAR DOOR LOCK CHILD PROTECTION COVER
    1. Disengage the 6 claws to remove the rear door lock child protection cover.
      GTY1012249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE REAR DOOR PANEL CUSHION
    1. Disengage the 2 claws to remove the rear door panel cushion.
      GTY1012247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

    Refer to PROCEDURE - Step 16

  36. REMOVE REAR DOOR LOWER OUTSIDE STRIPE

    Refer to PROCEDURE - Step 18

  37. REMOVE REAR DOOR OUTSIDE STRIPE

    Refer to PROCEDURE - Step 19

  38. REMOVE REAR INNER BLACK OUT TAPE

    Refer to PROCEDURE - Step 20

  39. REMOVE REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  40. REMOVE REAR DOOR REAR WINDOW FRAME MOULDING

    Refer to PROCEDURE - Step 4

  41. REMOVE REAR DOOR UPPER WINDOW FRAME MOULDING

    Refer to PROCEDURE - Step 5

  42. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 1

  43. REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  44. REMOVE REAR DOOR FRONT OUTSIDE SEAL
    1. Disengage the guide to remove the rear door front outside seal.
      GTY1015992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
