Removal [07/2020 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [07/2020 - 10/2022]

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 6

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 5 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 5 [12/2021 - 10/2022]

  6. REMOVE REAR DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 6 [12/2021 - 10/2022]

  7. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 7 [12/2021 - 10/2022]

  8. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 10 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 10 [12/2021 - 10/2022]

  9. REMOVE REAR DOOR REAR BELT SEAL

    Refer to PROCEDURE - Step 12 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 12 [12/2021 - 10/2022]

  10. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 14 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 14 [12/2021 - 10/2022]

  11. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 16 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 16 [12/2021 - 10/2022]

  12. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 17 [12/2021 - 10/2022]

  13. REMOVE REAR DOOR QUARTER WINDOW GLASS

    Refer to PROCEDURE - Step 18 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 18 [12/2021 - 10/2022]

  14. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 20 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 20 [12/2021 - 10/2022]

  15. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 21 [12/2021 - 10/2022]

  16. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY

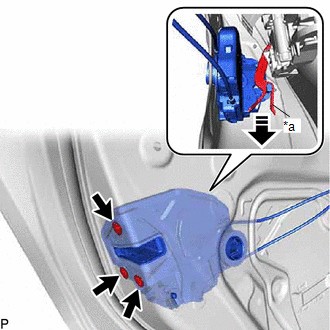

    1. Using a T30 "TORX" socket wrench, remove the 3 screws.
      GTY1012462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Plate
      Remove in this Direction
    2. Move the rear door lock with motor assembly downward as shown in the illustration to disconnect it from the release plate of the rear door outside handle frame sub-assembly, and remove the rear door lock with motor assembly.
    3. When reusing the rear door lock with motor assembly:

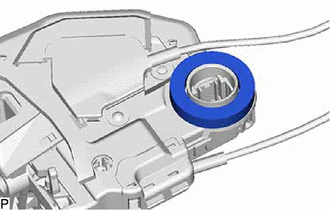

      1. Remove the door lock wiring harness seal from the rear door lock with motor assembly.
        GTY1012657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

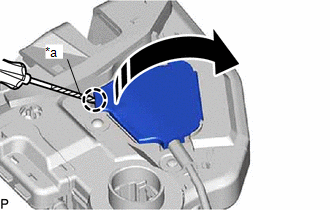

    1. Using a screwdriver, disengage the claw as shown in the illustration.
      GTY1012572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

      HINT:

      Tape the screwdriver tip before use.

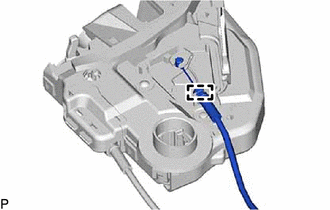

    2. Disengage the clamp to remove the rear door lock remote control cable assembly.
      GTY1012654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

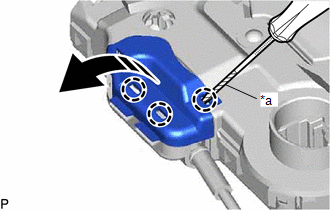

    1. Using a screwdriver, disengage the 3 claws as shown in the illustration.
      GTY1014076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

      HINT:

      Tape the screwdriver tip before use.

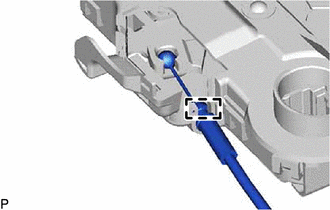

    2. Disengage the clamp to remove the rear door inside locking cable assembly.
      GTY1012653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
