Removal [07/2020 - ]: Procedure

REMOVE REAR DOOR INSIDE HANDLE BEZEL
Refer to PROCEDURE - Step 5 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 5 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - ]
REMOVE REAR DOOR ARMREST COVER
Refer to PROCEDURE - Step 6 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 6 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - ]
REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 7 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - ]

REMOVE REAR SPEAKER ASSEMBLY

NOTE:

Do not touch the speaker cone.

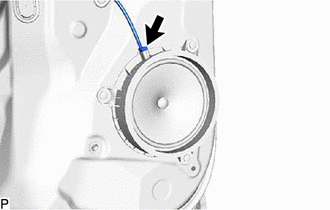

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

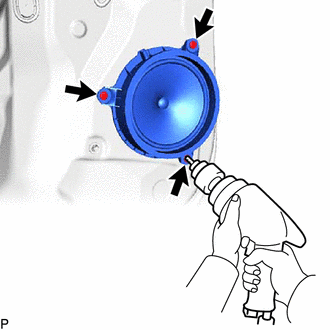

Using a drill bit with a diameter of less than 5 mm (0.197 in.), drill out the 3 rivet heads.

NOTE:

Do not drill the rivet at an angle as this will cause damage to the drill and rivet installation hole. Line up the drill with the rivet, and carefully drill out the rivet head.
Be careful as the drilled rivet will be very hot.

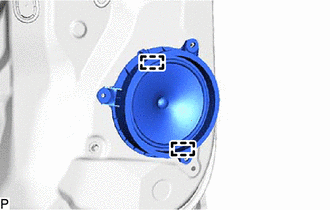

Disengage the 2 guides to remove the rear speaker assembly.
