Reassembly [07/2020 - ]: Procedure

  1. INSTALL INSTRUMENT PANEL CUSHION

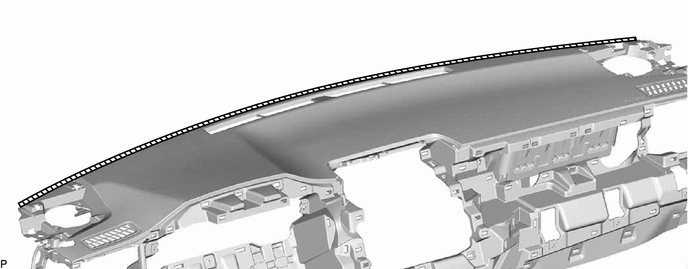

    1. Clean the instrument panel safety pad sub-assembly surface.
      1. Remove any remaining double-sided tape from the instrument panel safety pad sub-assembly surface.
        GTY1013326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Cleaning Area - -
      2. Wipe off any tape adhesive residue with cleaner.
    2. Remove the release paper from a new instrument panel cushion.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

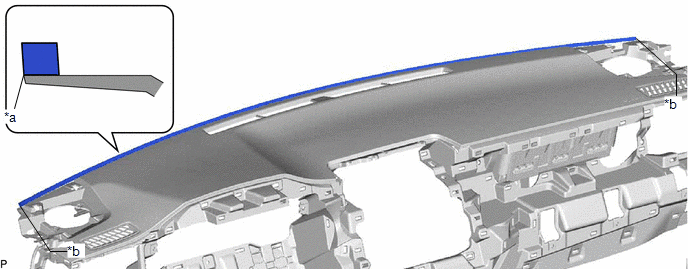

    3. Install the instrument panel cushion as shown in the illustration.
      GTY1012153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Edge of Curved Surface *b Outline

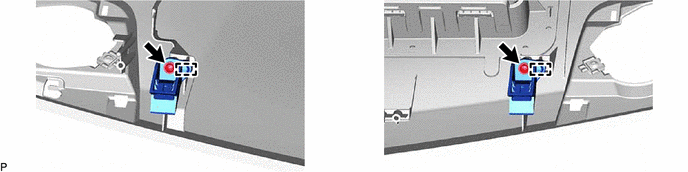

  2. INSTALL NO. 1 INSTRUMENT PANEL PIN
    1. Engage the 2 guides.
      GTY1012794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 No. 1 instrument panel pins with the 2 screws <C>.
  3. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL NO. 2 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 2

  5. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 3

  6. INSTALL ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

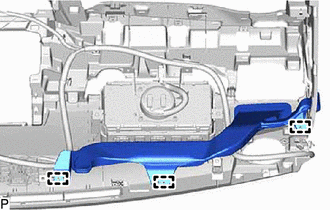

    1. Engage the 3 guides.
      GTY1012796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

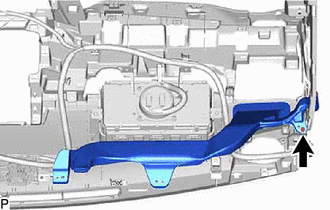

    2. Install the No. 2 side defroster nozzle duct with the screw <C>.
      GTY1012230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

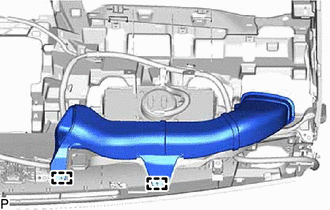

  8. INSTALL NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Engage the 2 guides.
      GTY1012235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

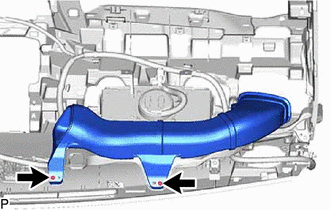

    2. Install the No. 3 heater to register duct sub-assembly with the 2 screws <C>.
      GTY1012244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT

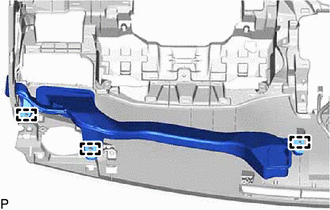

    1. Engage the 3 guides.
      GTY1012245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

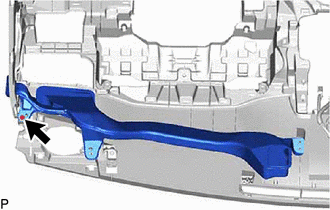

    2. Install the No. 1 side defroster nozzle duct with the screw <C>.
      GTY1013217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

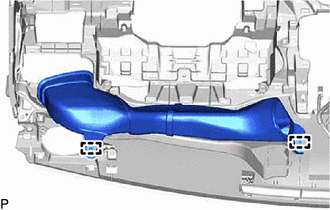

    1. Engage the 2 guides.
      GTY1013218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

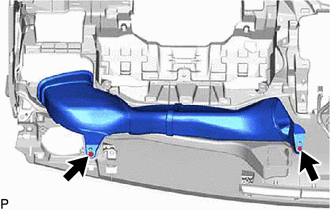

    2. Install the No. 1 heater to register duct sub-assembly with the 2 screws <C>.
      GTY1013214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL DEFROSTER NOZZLE ASSEMBLY

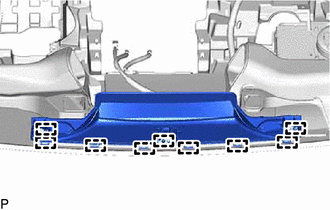

    1. Engage the 9 guides.
      GTY1013215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

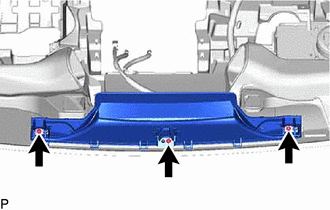

    2. Install the defroster nozzle assembly with the 3 screws <C>.
      GTY1012241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

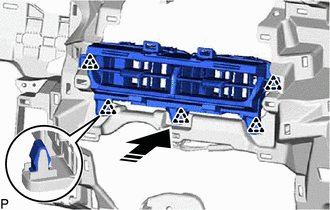

  12. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 5 clips as shown in the illustration to install the center instrument panel register assembly.
      GTY1012194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

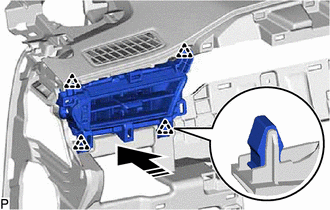

    1. Engage the 4 clips as shown in the illustration to install the No. 1 instrument panel register assembly.
      GTY1012645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  14. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

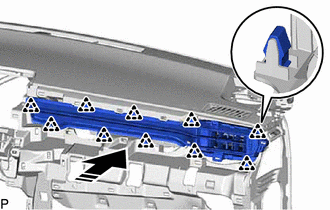

    1. Engage the 10 clips as shown in the illustration to install the No. 2 instrument panel register assembly.
      GTY1012734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  15. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

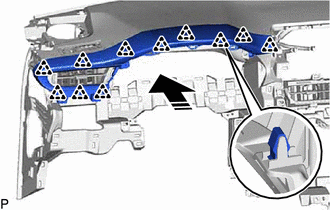

    1. Engage the 11 clips as shown in the illustration to install the No. 1 instrument panel garnish sub-assembly.
      GTY1013001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

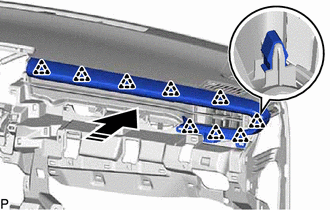

    1. Engage the 9 clips as shown in the illustration to install the No. 2 instrument panel garnish sub-assembly.
      GTY1013094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  17. INSTALL INSTRUMENT PANEL HOLE COVER (w/ Headup Display)

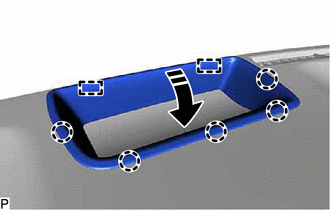

    1. Engage the 2 guides and 5 claws as shown in the illustration to install the instrument panel hole cover.
      GTY1012912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
