Disassembly [07/2020 - ]: Procedure

  1. REMOVE CONNECTOR BRACKET (w/o Illumination)

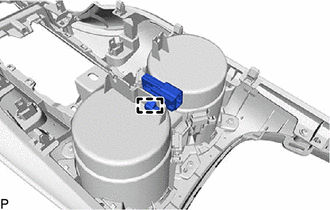

    1. Disengage the clamp to remove the connector bracket.
      GTY1012400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY (w/ Illumination)

    Refer to PROCEDURE - Step 11

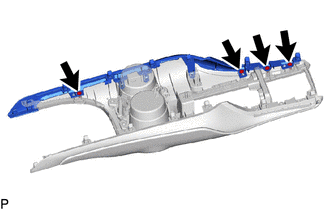

  3. REMOVE NO. 1 CONSOLE BOX SUPPORT
    1. Remove the 4 screws.
      GTY1013657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

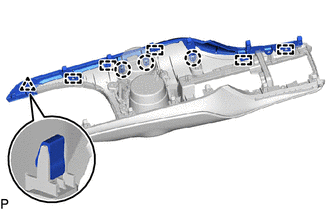

    2. Disengage the clip, 3 claws and 5 guides to remove the No. 1 console box support.
      GTY1013638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 CONSOLE BOX SUPPORT

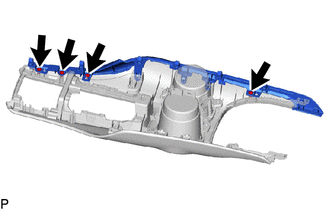

    1. Remove the 4 screws.
      GTY1013636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

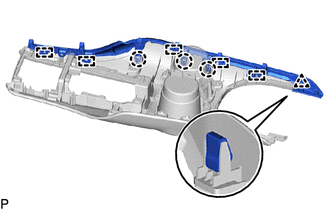

    2. Disengage the clip, 3 claws and 5 guides to remove the No. 2 console box support.
      GTY1014676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CONSOLE BOX POCKET GARNISH

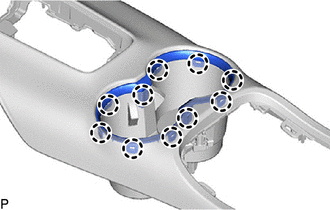

    1. Disengage the 10 claws to remove the console box pocket garnish.
      GTY1014321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY

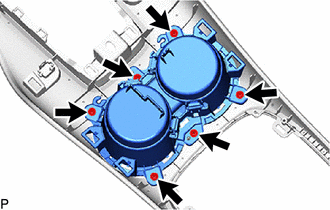

    1. Remove the 6 screws.
      GTY1013238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

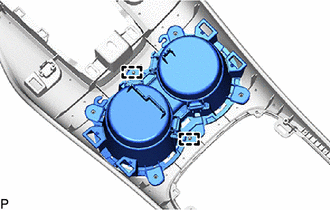

    2. Disengage the 2 guides to remove the instrument panel cup holder assembly.
      GTY1012397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

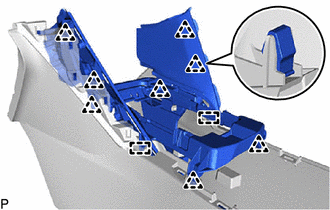

    1. Disengage the 8 clips and 2 guides to remove the rear upper console panel sub-assembly.
      GTY1012396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

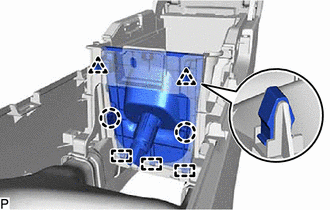

  8. REMOVE NO. 3 BOX PANEL
    1. Disengage the 2 clips, 2 claws and 3 guides to remove the No. 3 box panel.
      GTY1012381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

    Refer to PROCEDURE - Step 5

  10. REMOVE NO. 1 POWER OUTLET SOCKET COVER

    Refer to PROCEDURE - Step 6

  11. REMOVE NO. 2 CONSOLE BOX DUCT

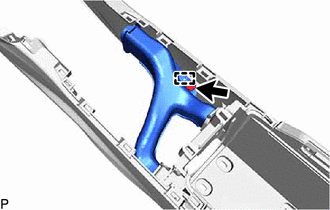

    1. Remove the clip.
      GTY1012368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the No. 2 console box duct.
  12. REMOVE CONSOLE BOX RETAINER

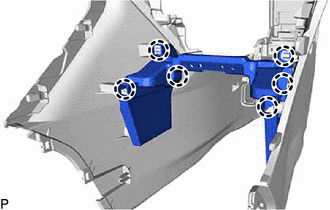

    1. Disengage the 6 claws to remove the console box retainer.
      GTY1012367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

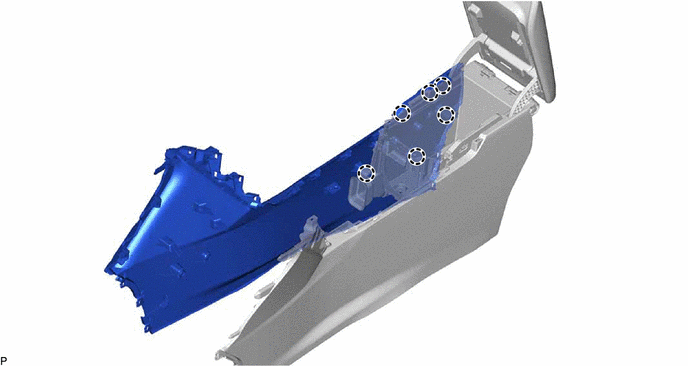

  13. REMOVE NO. 2 BOX SIDE PANEL
    1. Disengage the 6 claws to remove the No. 2 box side panel.
      GTY1012363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

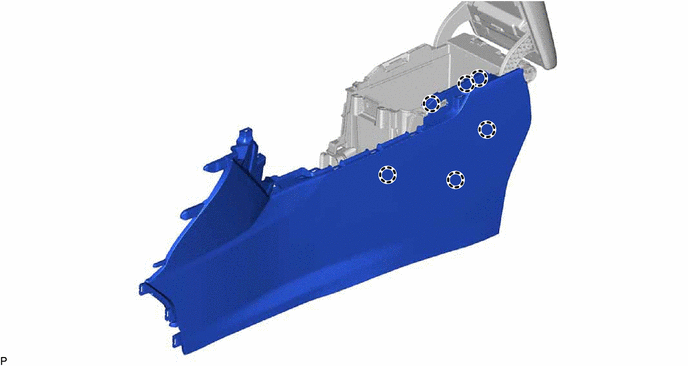

  14. REMOVE NO. 1 BOX SIDE PANEL
    1. Disengage the 6 claws to remove the No. 1 box side panel.
      GTY1012360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 4 CONSOLE BOX SUPPORT

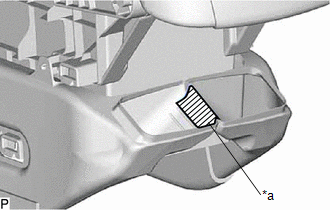

    1. Remove the nonwoven tape.
      GTY1012514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nonwoven Tape

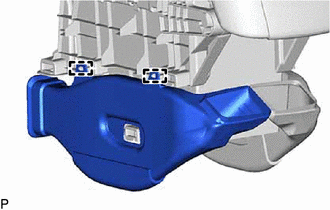

    2. Disengage the 2 guides to remove the No. 4 console box support.
      GTY1012346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

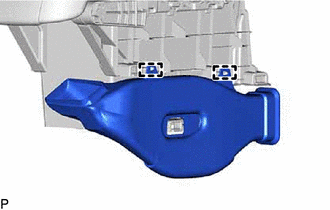

  16. REMOVE NO. 3 CONSOLE BOX DUCT
    1. Disengage the 2 guides to remove the No. 3 console box duct.
      GTY1012343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

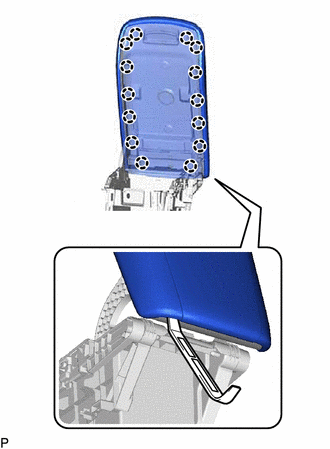

    1. Using a moulding remover, disengage the 14 claws to remove the console compartment door sub-assembly.
      GTY1012336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
