Removal [07/2020 - ]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 INSTRUMENT SIDE PANEL

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 3

  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 4

  5. REMOVE UPPER CONSOLE COVER

    Refer to PROCEDURE - Step 5

  6. REMOVE CONSOLE BOX ORNAMENT (w/o Seat Heater System)

    Refer to PROCEDURE - Step 6

  7. REMOVE CONSOLE BOX ORNAMENT (w/ Seat Heater System)

    Refer to PROCEDURE - Step 7

  8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  11. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

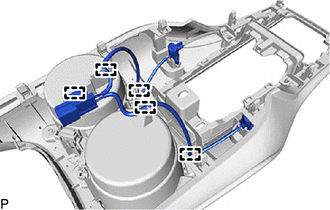

    1. Disengage the 5 clamps.
      GTY988204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

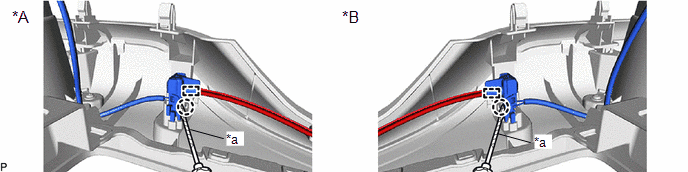

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws.
      GTY988110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
      *a Protective Tape - -
    3. Disengage the 2 guides to remove the console box illumination light assembly.
