Removal [07/2020 - ]: Procedure

  1. REMOVE CONSOLE BOX ORNAMENT (w/o Seat Heater System)

    Refer to PROCEDURE - Step 6

  2. REMOVE CONSOLE BOX ORNAMENT (w/ Seat Heater System)

    Refer to PROCEDURE - Step 7

  3. REMOVE CONSOLE BOX POCKET

    Refer to PROCEDURE - Step 14

  4. REMOVE NO. 3 BOX PANEL

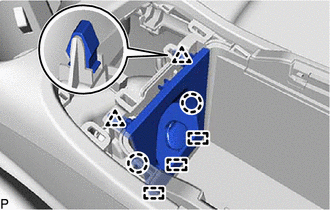

    1. Disengage the 2 clips, 2 claws and 3 guides to separate the No. 3 box panel.
      GTY987454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 3 box panel.
  5. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

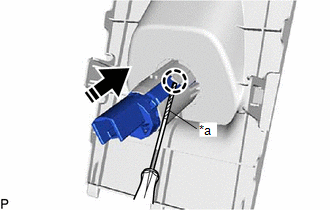

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.
      GTY988524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  6. REMOVE NO. 1 POWER OUTLET SOCKET COVER

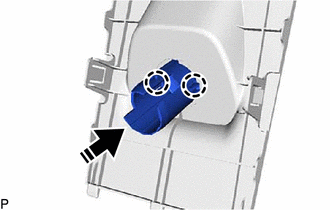

    1. Disengage the 2 claws and remove the No. 1 power outlet socket cover as shown in the illustration.
      GTY988028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
