Removal [06/2020 - 12/2021]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [06/2020 - 10/2022]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]

  2. REMOVE BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY

    Refer to REMOVAL [06/2020 - 12/2021]

  3. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 6

  4. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

    Refer to PROCEDURE - Step 3

  6. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
    1. Disengage the 2 clamps to separate the wire harness from the brake pedal support assembly.
      GTY874569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

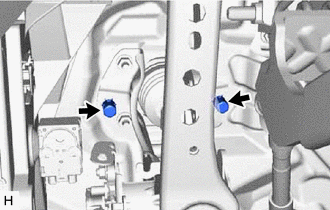

    2. Remove the 2 clips from the brake pedal support assembly.
      GTY874476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

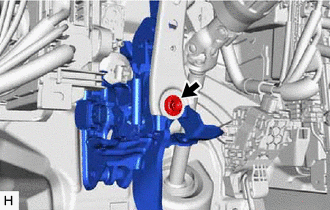

    3. Remove the bolt and separate the brake pedal support assembly while avoiding the stud bolts of the brake master cylinder support base.
      GTY874567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to deform the bracket of the instrument panel reinforcement assembly.

  7. REMOVE BRAKE PEDAL PAD
    1. Remove the brake pedal pad from the brake pedal support assembly.
