Removal [06/2020 - ]: Procedure

Refer to PROCEDURE - Step 15 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 15 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Turn in this Direction

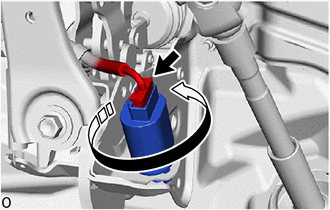

   Disconnect the connector.

2. Turn the stop light switch assembly counterclockwise and remove it.

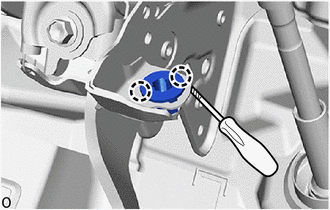

1. Using a screwdriver, detach the claw and remove the stop light switch mounting adjuster.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

   NOTE:

   The stop light switch mounting adjuster must not be reused.

   HINT:

   Tape the screwdriver tip before use.
