Installation [06/2020 - 10/2022]: Procedure

INSTALL BRAKE PEDAL PAD
1. Install the brake pedal pad to the brake pedal support assembly.
  HINT:

  Installation is easier after applying a small amount of soapy water.

INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

Install the brake pedal support assembly with the bolt while avoiding the stud bolts of the brake master cylinder support base.
NOTE:
Be careful not to deform the bracket of the instrument panel reinforcement assembly.

Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)
Install the 2 clips.

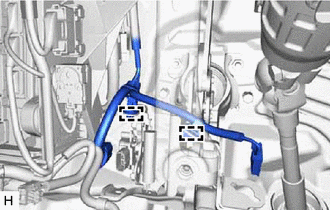

Engage the 2 clamps to install the wire harness to the brake pedal support assembly.

INSTALL BRAKE MASTER CYLINDER GASKET
See step 3
INSTALL BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY
See step 4
INSTALL PUSH ROD PIN
See step 5
INSTALL BRAKE PEDAL RETURN SPRING
See step 6
INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER
Refer to PROCEDURE - Step 1
INSTALL STOP LIGHT SWITCH ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL BRAKE PEDAL STROKE SENSOR ASSEMBLY
Refer to PROCEDURE - Step 2
CONNECT BRAKE LINE
See step 9
CONNECT ENGINE ROOM MAIN WIRE
See step 7
FILL RESERVOIR WITH BRAKE FLUID
INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to INSTALLATION [06/2020 - 10/2022]
INSTALL ECM
Refer to INSTALLATION [06/2020 - ]
BLEED BRAKE SYSTEM
See step 3
INSPECT AND ADJUST BRAKE PEDAL
Refer to ADJUSTMENT [06/2020 - ]
ADJUST BRAKE PEDAL STROKE SENSOR ASSEMBLY
Refer to PROCEDURE - Step 4
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 19
INSTALL FUSE BOX OPENING COVER
Refer to PROCEDURE - Step 20
INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 21
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 25
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 26
INSTALL COWL VENTILATOR PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 48
INSTALL COWL VENTILATOR SPLASH SHIELD
Refer to PROCEDURE - Step 49
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to INSTALLATION [06/2020 - ]
PERFORM CALIBRATION
Refer to UTILITY [06/2020 - ]
CHECK AND CLEAR DTC
Refer to DTC CHECK / CLEAR [06/2020 - ]
INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [06/2020 - ]
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [06/2020 - 10/2022]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [06/2020 - 12/2021] , or refer to AUTOMATIC LEARNING CHART [12/2021 - ]
