Installation [06/2020 - ]: Procedure

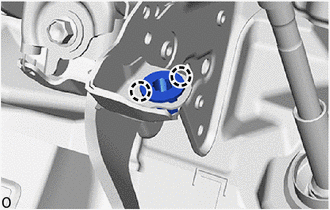

1. Attach the claw to install a new stop light switch mounting adjuster.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Insert the stop light switch assembly to the stop light switch mounting adjuster until the switch body slightly touches the brake pedal.
   NOTE:

   Do not depress the brake pedal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

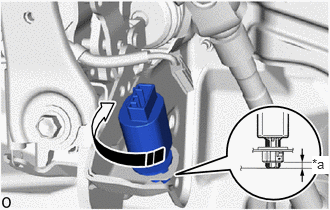

2. Turn the stop light switch assembly clockwise by approximately one fourth of a rotation.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion Amount Measurement Area
   	Turn in this Direction

3. Check the protrusion amount of the shaft.

   Standard

   0.5 to 2.6 mm (0.0197 to 0.1024 in.)

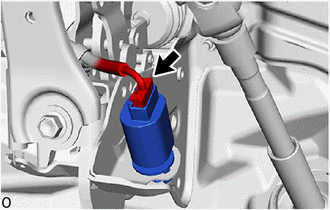

4. Connect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 24 [06/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - ]
