Installation [06/2020 - 10/2022]: Procedure

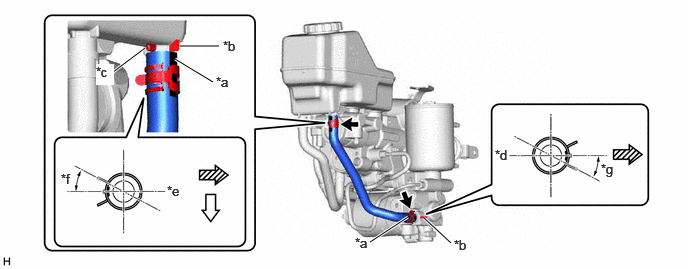

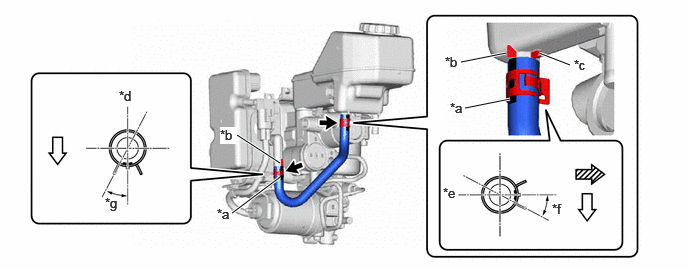

1. Install the No. 1 reservoir hose, and slide the 2 clips to secure it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Paint Mark	*b	Rib (A)
   *c	Rib (B)	*d	Center of Rib (A)
   *e	Center of Rib (B)	*f	within 40°
   *g	within 45°	-	-
   	Front of the Vehicle		Outside of the Vehicle

   NOTE:

   • Make sure that the paint mark is facing the front of the vehicle.
   • Install the clip within the range shown in the illustration.

1. Install the No. 2 reservoir hose, and slide the 2 clips to secure it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Paint Mark	*b	Rib (A)
   *c	Rib (B)	*d	Center of Rib (A)
   *e	Center of Rib (B)	*f	within 40°
   *g	within 45°	-	-
   	Front of the Vehicle		Outside of the Vehicle

   NOTE:

   • Make sure that the paint mark is facing the front of the vehicle (Upper Side).
   • Make sure that the paint mark is outside of the vehicle (Lower Side).
   • Install the clip within the range shown in the illustration.

1. Install a new brake booster gasket to the brake master cylinder with pump assembly.

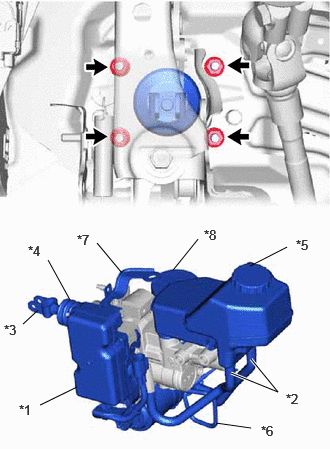

1. Install the brake master cylinder with pump assembly with the 4 nuts.

   Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

   NOTE:

   • Do not apply excessive force to the brake lines.
   • Be careful not to allow brake fluid to enter the connector.
   • If installing a new brake master cylinder with pump assembly, do not remove the hole plugs before connecting the brake lines because the brake booster with master cylinder assembly is filled with brake fluid.
   • Do not carry the brake master cylinder with pump assembly by the parts shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Skid Control ECU
   *2	Reservoir Hose
   *3	Master Cylinder Push Rod Clevis
   *4	Boot
   *5	Reservoir
   *6	No. 1 Brake Actuator Tube
   *7	No. 1 Wire Clamp Bracket
   *8	Brake Booster with Accumulator Pump Assembly

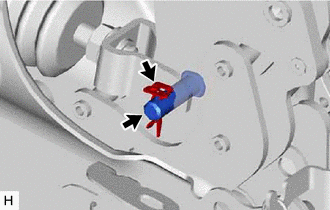

1. Apply lithium soap base glycol grease to the push rod pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium Soap Base Glycol Grease

2. Connect the master cylinder push rod clevis to the brake pedal support assembly with the push rod pin, and install a new clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Be sure to install the push rod pin in the correct direction.

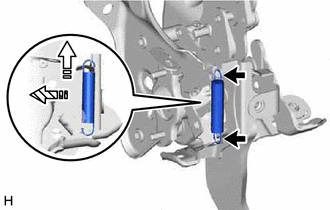

1. Install the brake pedal return spring to the brake pedal support assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Up
   	Front of the Vehicle

   NOTE:

   Attach the bottom part of the brake pedal return spring first, making sure that the open part of the hook is facing the front of the vehicle. Attach the top part of the brake pedal return spring second, making sure that the open part of the hook is facing the rear of the vehicle.

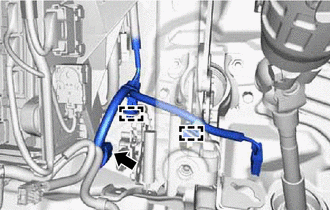

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Engage the 2 clamps to the brake pedal support assembly.

2. Connect the connector to the brake pedal stroke sensor assembly.

Refer to PROCEDURE - Step 2

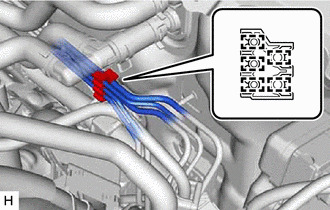

1. Engage the 5 clamps to install a new brake tube clamp to the brake lines.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not kink or damage the brake lines.

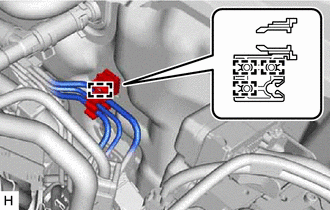

2. Engage the 4 clamps to install a new brake tube clamp to the brake lines.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not kink or damage the brake lines.

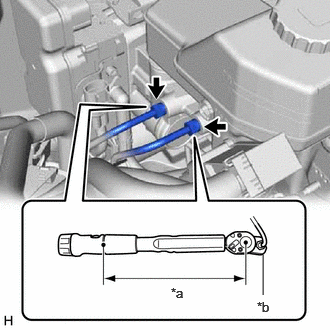

3. Using a union nut wrench, connect the 2 brake lines to the brake master cylinder with pump assembly.

   Specified tightening torque

   Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

   NOTE:

   • Do not kink or damage the brake lines.
   • Do not allow the brake lines to twist or interfere with other parts or the vehicle body during tightening.
   • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [06/2020 - ]

   • When using a union nut wrench (fulcrum length of 20 mm (0.787 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

     17.4 N.m (177 kgf/cm, 13 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length
   *b	Union Nut Wrench

1. Engage the clamp to the brake master cylinder with pump assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Connect the connector
   	Lock the lock lever

2. Connect the connector to the brake master cylinder with pump assembly and lock the lock lever.
   NOTE:

   • Make sure that the connector is locked securely.
   • Make sure that the connector can be connected smoothly.
   • Do not allow water, oil or dirt to enter the connector.

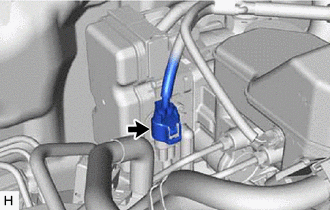

3. Connect the brake fluid level warning switch connector.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Connect the brake booster pump connector.

Refer to PROCEDURE - Step 7

Refer to INSTALLATION [06/2020 - 10/2022]

Refer to INSTALLATION [06/2020 - ]

Refer to UPDATE ECU SECURITY KEY [06/2020 - ]

See step  3

Refer to ADJUSTMENT [06/2020 - ]

Refer to PROCEDURE - Step 48

Refer to PROCEDURE - Step 49

Refer to INSTALLATION [06/2020 - ]

Refer to UTILITY [06/2020 - ]

Refer to DTC CHECK / CLEAR [06/2020 - ]

Refer to OPERATION CHECK [06/2020 - ]

Refer to WORK PROCEDURE [06/2020 - 10/2022]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [06/2020 - 12/2021] , or refer to AUTOMATIC LEARNING CHART [12/2021 - ]
